Mitutoyo TM-1005B Toolmaker Microscope Digimatic

This Mitutoyo toolmaker's microscope TM-1005B has digimatic micrometer heads. X-Y stage with 4" x 2" travel (stage with 2" x 2" travel can be found here. If you are interested in the TM-1005B with manual micrometer heads click here.

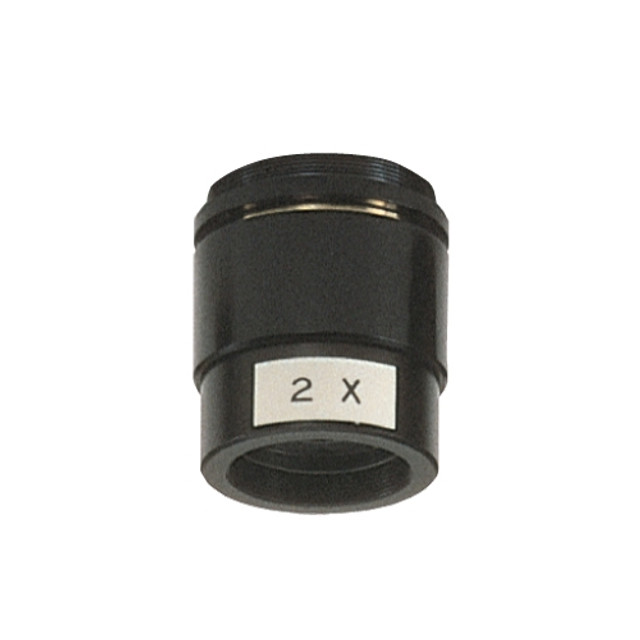

• Objective Lens: 2x objective, NA 0.07, WD 2.638" (67mm). Optional 5x & 10x objectives available below.
• Eyepiece: Monocular 15x eyepiece, FOV 13mm, inclined 30º with built-in cross-line reticle. Erect image, diopter adjustable.
• Eyepiece Protractor: Measure angles quickly by turning protractor to align the cross-hair reticle with the workpiece image. Graduation 1º. Protractor range 360º. Minimum reading by vernier 6'.
• Total Magnification: 30x
• Specimen Stage: 9.45" x 6" (240mm x 152mm) stage with X-Y travel of 4" x 2" (100mm x 50mm). Effective area of glass stage is 5.91" x 3.62" (150mm x 92mm). Maximum workpiece load is 11lbs (5kg).
• Maximum workpiece height: 4.21" (107mm)
• Micrometer Heads: Includes two digimatic micrometer heads for X-Y measurement. Micrometer heads switch between mm / inches. Range 2" (50mm). Resolution 0.00005"/0.001mm.
• Illumination: Transmitted LED light, GIF (green) filter, adjustable light intensity. Reflected light is oblique single-source LED illuminator with stepless brightness adjustment. This illuminator can be replaced with optional LED ring light.
• Stand: Track stand with coarse focusing.
• Weight: 33 lbs (15kg)

Mitutoyo part # = 176-821-11A. This microscope replaces TM-510 part # 176-809A.

Here is a brochure for Toolmaker microscopes.
