Mitutoyo Steel Setting Ring 10"

Name: Mitutoyo Steel Setting Ring 10"
SKU: 177-309
Price: 3339 USD
Availability: InStock

No reviews yet Write a Review

This steel setting ring is used to accurately and quickly set inside micrometers, dial gages and Holtest. If the setting ring is used properly, it can be used f…

SKU: 177-309

Measurement: Inches 10 - 20"

$3,339.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

This steel setting ring is used to accurately and quickly set inside micrometers, dial gages and Holtest. If the setting ring is used properly, it can be used for calibration.

Nominal size 10"

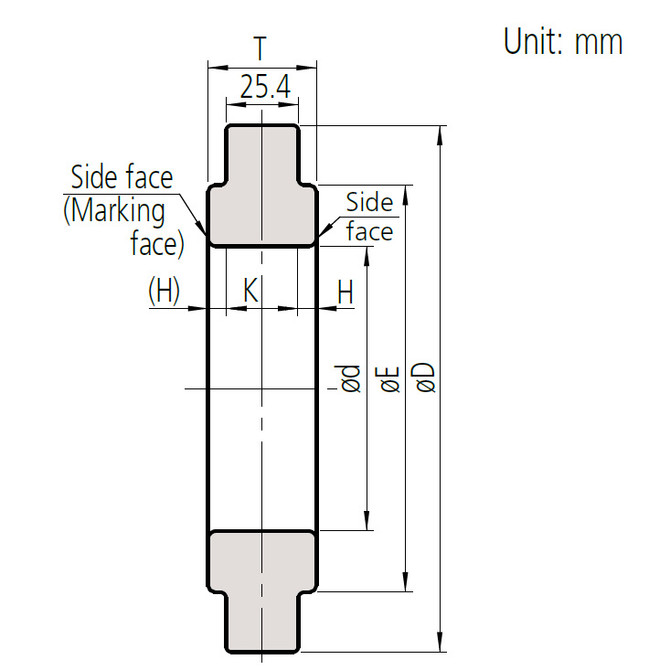

Dimensions
- ØD 362mm
- ØE 290mm
- T 38.1mm
Type B
Tolerance between nominal size and actual diameter ± 0.0008"
Uncertainty of unmarked diameter value ± 0.00010"
Roundness/cylindricity 0.00012"
Distance from side face H 5mm
Size warranted calibration surface K 28.10mm

Mitutoyo Part # 177-309
NOTE: This item is not returnable.
