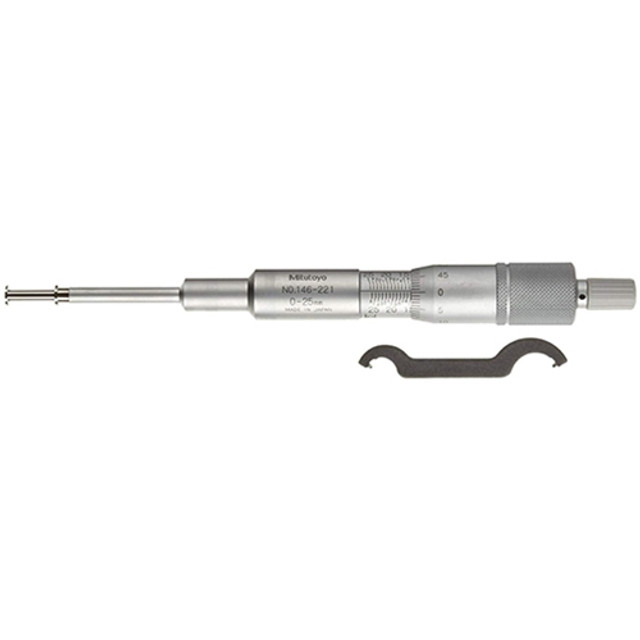

This groove micrometer has a non-rotating spindle with a two directional ratchet stop and was designed to measure the depth, width and location of grooves both …

Read more
SKU:
$515.00 - $621.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

This groove micrometer has a non-rotating spindle with a two directional ratchet stop and was designed to measure the depth, width and location of grooves both inside and outside of tubes and bores. Select the flange options of Ø0.25 inches or Ø0.5 inches from above.

  • Range outside 0-1"
  • Range inside 0.055-1.05"
  • Accuracy +/- 0.0004"
  • Parallelism 0.0004"
  • Graduation 0.001"
  • Measuring force 0.7-1.2N
  • Flange Ø0.25 inches or Ø0.5 inches. Select from above.
  • Mass 135g / 185g

MItutoyo part # 146-231, 146-232
NOTE: This item is not returnable.
