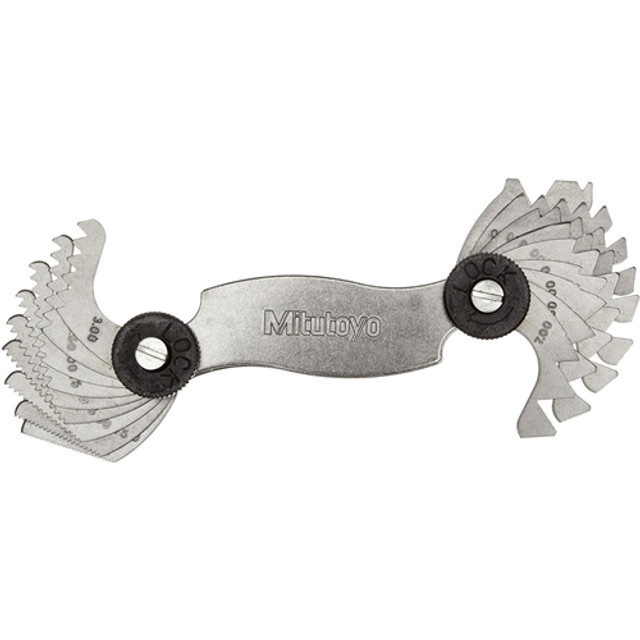

Mitutoyo Metric Screw Pitch Gage 0.35-6mm
Mitutoyo Metric Screw Pitch Gage 0.35-6mm
Mitutoyo Metric Screw Pitch Gage 0.35-6mm

Mitutoyo Metric Screw Pitch Gage 0.35-6mm

No reviews yet Write a Review
This metric screw pitch gage has the thread pitch size stamped on each gage and has the following specifications: Metric Screw Pitch Gage: 60º Range: 0.35 - 6m…

Read more
SKU: 188-130
$57.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

This metric screw pitch gage has the thread pitch size stamped on each gage and has the following specifications:

  • Metric Screw Pitch Gage: 60º
  • Range: 0.35 - 6mm
  • 22 Leaves: 0.35, 0.40, 0.45, 0.50, 0.60, 0.70, 0.75, 0.80, 1, 1.25, 1.50, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm, and 60º angle gage.

Technical Data:

TPI Metric  Accuracy
 Pitch (mm) Angular (minutes)
4-6  6.35-4.23  +/-0.05  +/-35
7-12 3.63-2.12   +/-0.05  +/-40
13-25  1.95-1.02   +/-0.05  +/-45
26-48  0.98-0.53   +/-0.05  +/-50
60  0.42   +/-0.05  +/-60


Mitutoyo part #: 188-130

NOTE: This item is not returnable.
