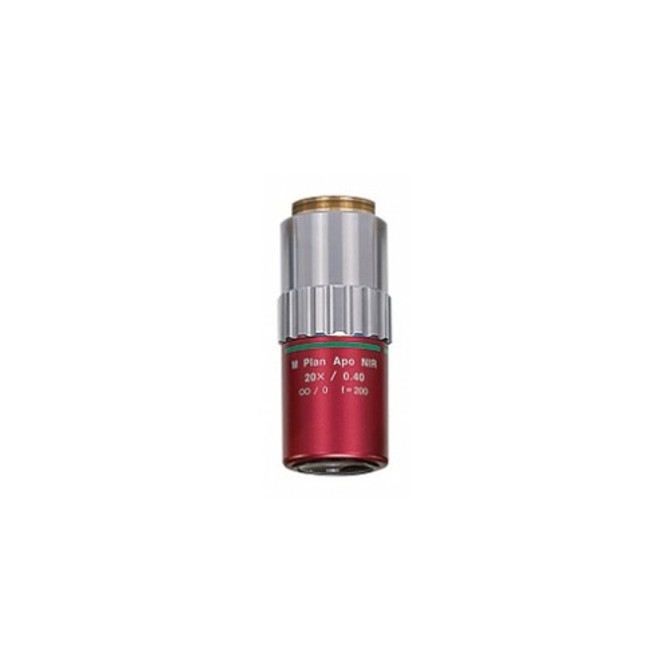

Mitutoyo M Plan Apo NIR 20x Objective
Mitutoyo M Plan Apo NIR 20x Objective
Mitutoyo M Plan Apo NIR 20x Objective

Mitutoyo M Plan Apo NIR 20x Objective

No reviews yet Write a Review
Infinity corrected, metallurgical brightfield plan apochromat near-infrared radiation range 20x objective long working distance lens. Suitable for laser applica…

Read more
SKU: 378-824-16
Objective Magnification: 20x
$4,355.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

Infinity corrected, metallurgical brightfield plan apochromat near-infrared radiation range 20x objective long working distance lens. Suitable for laser applications. Wavelength correction from visible to near-infrared (1800nm). Lens features include:

  • Magnification = 20x
  • NA = 0.40
  • WD = 20.0mm
  • Wavelength Range = 480nm to 1800nm
  • Suitable YAG Laser Type = Fundamental and second and third-harmonic waves
  • Focal Length = 10mm
  • Resolving Power = 0.7µm
  • Depth of Field = 1.7µm
  • Real Field of View with Ø24 Eyepiece = Ø1.2
  • Real Field of View with 1/2" Chip Camera = 0.24 x 0.32
  • Parfocal Distance = 95mm
  • Thread Size = M26
  • Weight = 300g
Mitutoyo Part # = 378-824-16
Note: This item is not returnable.
