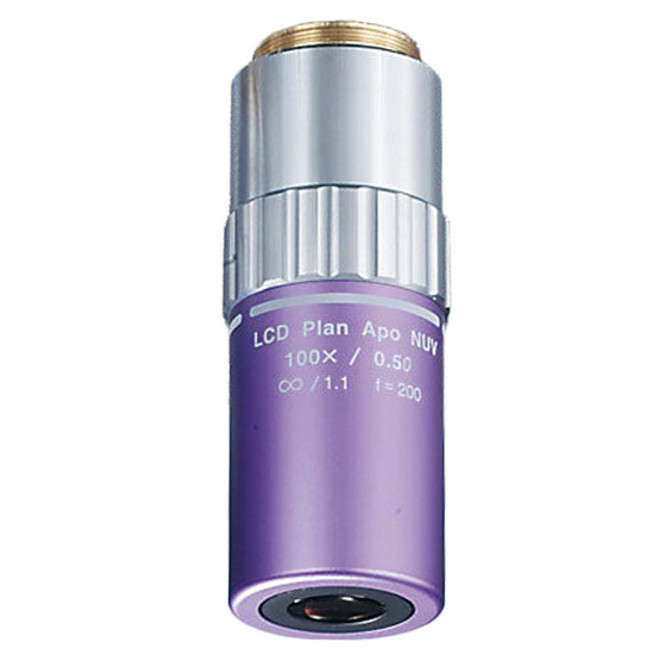

Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass

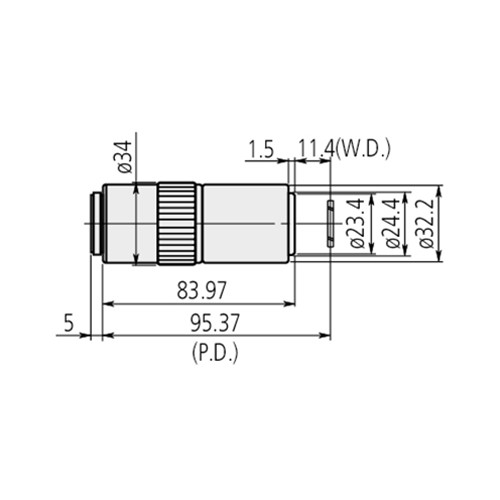

Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass Diagram
Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass
Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass Diagram
Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass
Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass Diagram

Mitutoyo LCD Plan Apo NUV 100x Objective 1.1 Glass

No reviews yet Write a Review
Infinity corrected, metallurgical brightfield plan apochromat near-ultraviolet radiation range 50x objective long working distance lens. Suitable for laser appl…

Read more
SKU: 378-751-4
Objective Magnification: 100x
$13,375.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

Infinity corrected, metallurgical brightfield plan apochromat near-ultraviolet radiation range 50x objective long working distance lens. Suitable for laser applications. Wavelength correction from visible to near-ultravoilet (355nm) to visible. This lens has glass-thickness compensation and is designed to observe a specimen through glass 1.1mm thick. Lens features include:

  • Magnification 100x
  • Glass Thickness 1.1mm
  • NA 0.50
  • WD 10.03mm
  • Wavelength Range 355nm to 620nm
  • Suitable YAG Laser Type Fundamental and second and third-harmonic waves
  • Focal Length 2mm
  • Resolving Power 0.6µm
  • Depth of Field 1.1µm
  • Real Field of View with Ø24 Eyepiece Ø0.24
  • Real Field of View with 1/2" Chip Camera 0.05 x 0.06
  • Thread Size M26
  • Weight 380g

Mitutoyo Part # = 378-751-4
Note: This item is not returnable.
