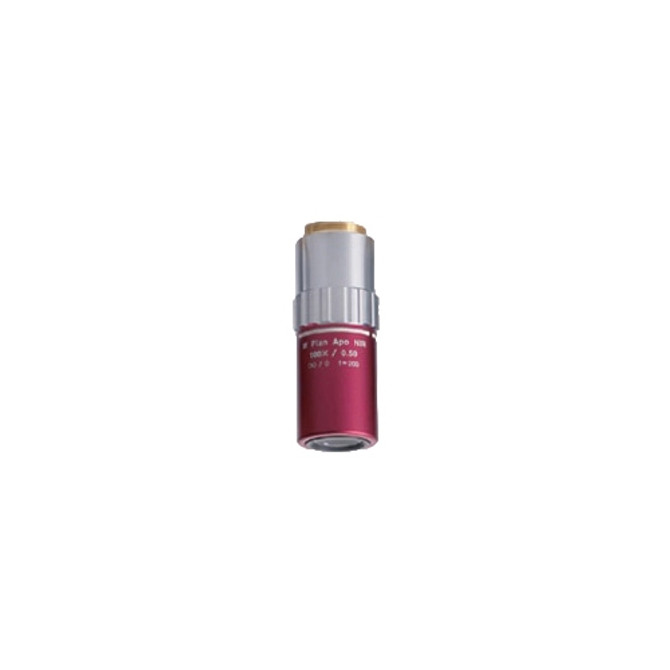

Mitutoyo LCD Plan Apo NIR 100x Objective 0.7 Glass

Infinity corrected, metallurgical brightfield plan apochromat near-infrared radiation range 100x objective long working distance lens. Suitable for laser applications. Wavelength correction from visible to near-infrared (1800nm). This lens has glass-thickness compensation and is designed to observe a specimen through glass 0.7mm thick. Lens features include:

• Magnification 100x
• Glass Thickness 0.7mm
• NA 0.50
• WD 11.76mm
• Wavelength Range 480nm to 1800nm
• Suitable YAG Laser Type Fundamental and second and third-harmonic waves
• Focal Length 2mm
• Resolving Power 0.6µm
• Depth of Field 1.1µm
• Real Field of View with Ø24 Eyepiece Ø0.24
• Real Field of View with 1/2" Chip Camera 0.05 x 0.06
• Thread Size M26
• Weight 335g

Mitutoyo Part # = 378-754-15
Note: This item is special-order and is not returnable.
