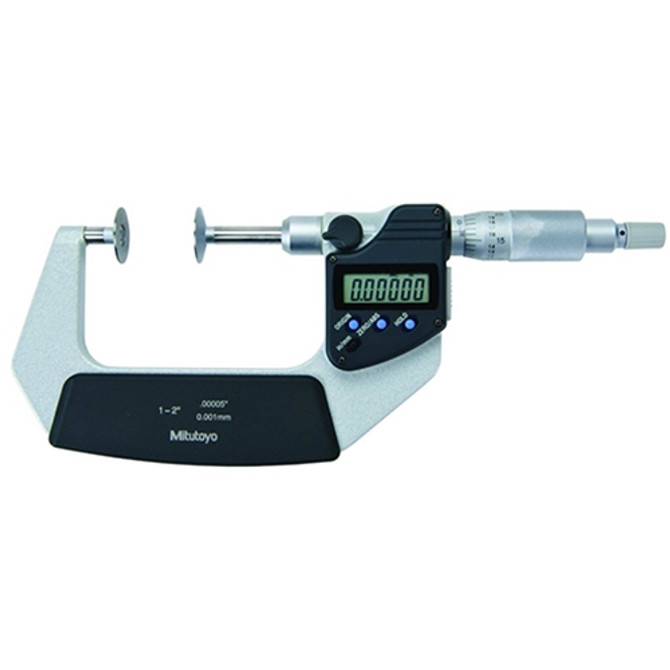

Mitutoyo Digital Disk Non-Rotating Micrometer 1-2" or 25.4-50.8mm

This Mitutoyo digital disk micrometer has a rotating spindle and is designed to easily measure root tangent length of spur gears and helical gears. The ratchet stop provides constant force. Non-slip grip finish. Includes standard bar.

Contact Microscope World for information on having this instrument calibrated.

• Range: 1-2" / 25.4-50.8mm
• Accuracy: ±0.0002"
• Resolution: 0.00005" / 0.001mm
• Mass: 355g
• Edge Thickness: 0.028" / 0.7mm to enter narrow recesses.
• Diameter of Measuring Disk: 0.787' / 20mm
• Data Output: Yes, use SPC cable with data switch.
• Display: LCD
• Flatness: 0.00004" / 1µm
• Parallelism: 0.00016" /  4µm
• Battery: SR44, battery life approximately 1 year under normal use.
• Functions: Origin-set, zero/ABS, data hold, data output,inch/mm conversion, function lock, low voltage alarm, counting value composition error alarm.

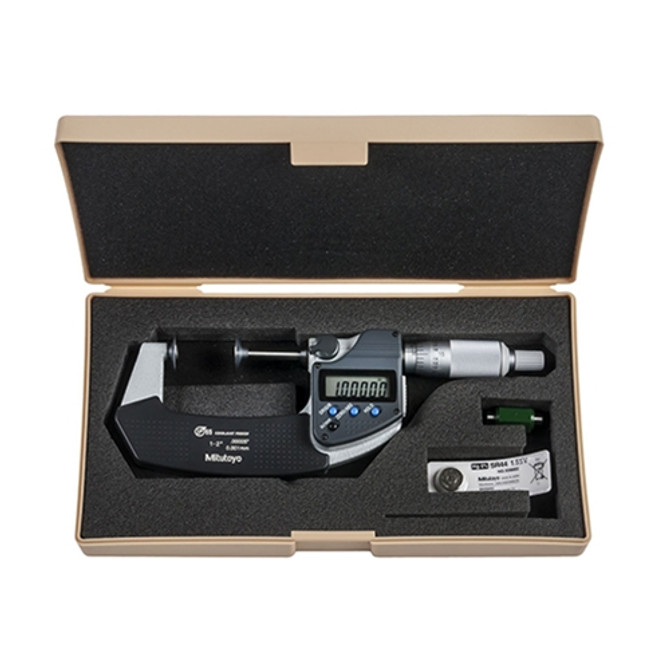

• Case: Includes fitted case.

Mitutoyo Part # = 323-351-32
NOTE: This item is not returnable.
