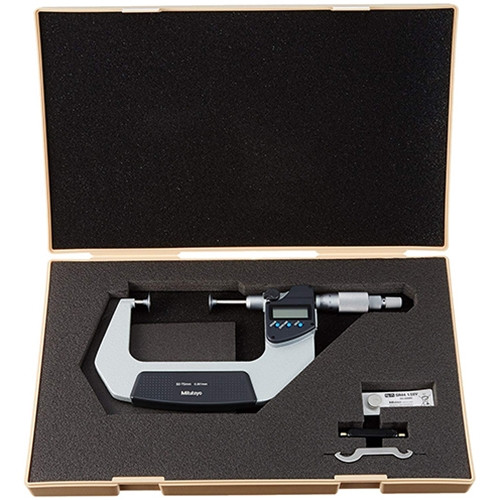

Mitutoyo Digital Disk Micrometer 50-75mm

This Mitutoyo digital disk micrometer has a non-rotating spindle and is designed to easily measure root tangent length of spur gears and helical gears. The non-rotating spindle eliminates torque on the workpiece. The ratchet stop provides constant force. Non-slip grip finish. Includes standard bar.

Contact Microscope World for information on having this instrument calibrated.

• Range 50-75mm
• Accuracy +/- 6µm
• Resolution 0.001mm
• Diameter of Measuring Disk 20mm
• Data Output Yes, use SPC cable with data switch.
• Display LCD
• Flatness 1µm
• Parallelism 6µm
• Battery SR44, battery life approximately 1 year under normal use.
• Functions origin-set, zero/ABS, data hold, data output, function lock, low voltage alarm, counting value composition error alarm.
• Case includes fitted case.

Mitutoyo Part # = 369-252-32
NOTE: This item is not returnable.
