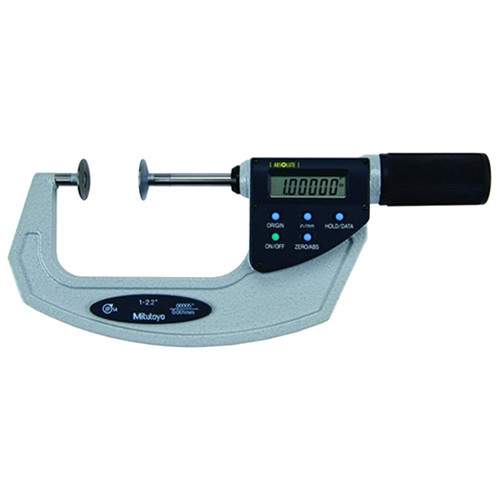

Mitutoyo Digital Disk Micrometer 1-2.2" / 25.4-55.88mm Quickmike Type

This Mitutoyo digital disk micrometer Quickmike type has a speedy spindle feed of 10mm/rev. The non-rotating spindle is designed to easily measure root tangent length of spur gears and helical gears. The non-rotating spindle eliminates torque on the workpiece. The ratchet stop provides constant force. Non-slip grip finish. Includes standard bar.

Contact Microscope World for information on having this instrument calibrated.

• Range 1-2.2" / 25.4-55.88mm
• Accuracy +/- .0002"
• Resolution 0.00005"/0.001mm
• Diameter of Measuring Disk 0.787" / 20mm
• Data Output Yes, use Digimatic 6-Pin SPC cable
• Display LCD
• Flatness 0.00004" / 1µm
• Parallelism 0.00016" / 4µm
• Battery SR44, battery life approximately 1 year under normal use.
• Functions origin-set, zero/ABS, data hold, data output, inch/mm conversion, function lock, low voltage alarm, counting value composition error alarm.
• Case includes fitted case.

Mitutoyo Part # = 369-422-22
NOTE: This item is not returnable.
