Mitutoyo Digital Disk Micrometer 0-30mm- Quickmike Type

This Mitutoyo digital disk micrometer Quickmike type has a speedy spindle feed of 10mm/rev. The non-rotating spindle is designed to easily measure root tangent length of spur gears and helical gears. The non-rotating spindle eliminates torque on the workpiece. The ratchet stop provides constant force. Non-slip grip finish.

Contact Microscope World for information on having this instrument calibrated.

• Range 0-30mm
• Accuracy +/- 4µm
• Resolution 0.001mm
• Diameter of Measuring Disk 20mm
• Data Output Yes, use Digimatic 6-Pin SPC cable.
• Display LCD
• Flatness 1µm
• Parallelism 4µm
• Battery SR44, battery life approximately 1 year under normal use.
• Functions origin-set, zero/ABS, data hold, data output, function lock, low voltage alarm, counting value composition error alarm.

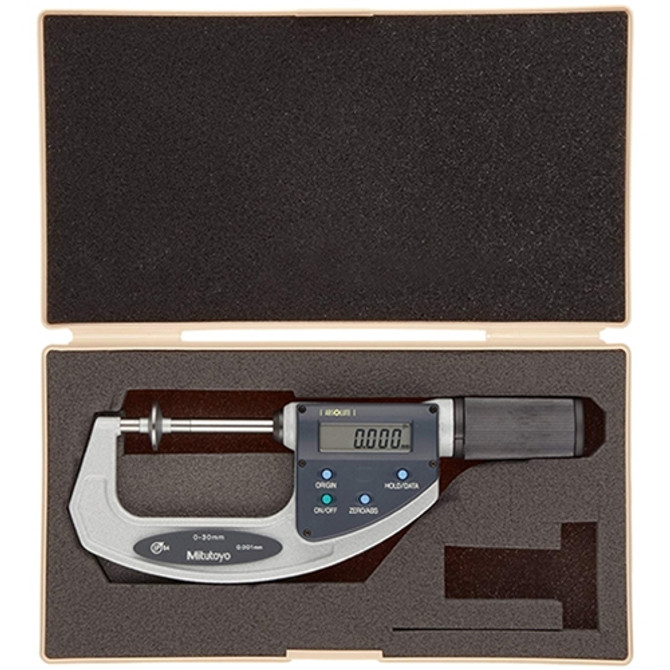

• Case includes fitted case.

Mitutoyo Part # = 369-411-20 (Formerly Part# 369-411)
NOTE: This item is not returnable.
