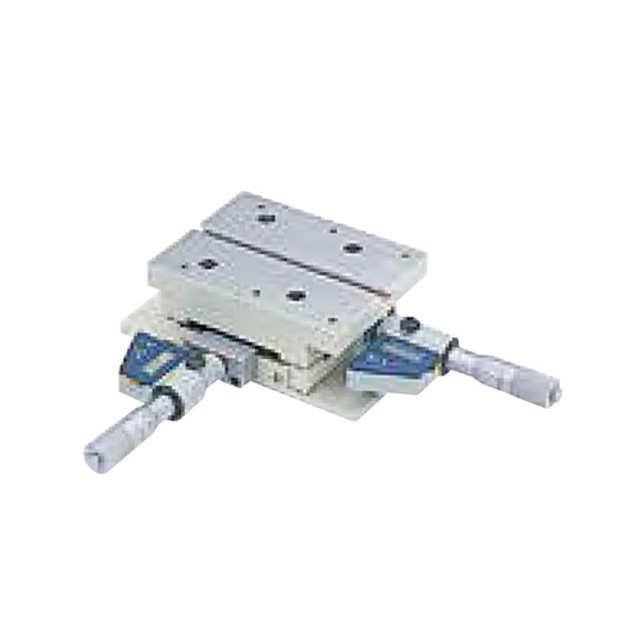

Mitutoyo Digimatic XY Travel and Leveling Table for Surftest SJ-410 Series

The Mitutoyo digimatic XY travel and leveling table enables alignment adjustments in the X and Y directions when measuring workpiece surfaces. Axis alignment is much easier because the tilt adjustment center is the same as the rotation center of the table. This XY travel and leveling table is compatible with the Surftest SJ-410 series surface roughness testers.

• Travel range ± 12.5mm
• Leveling adjustment angle range ± 1.5º
• Swivel angle range ± 2º
• Table dimensions 130mm x 100mm
• Resolution 0.001mm
• Maximum load 15 kg
• Total dimensions (W x D x H) mm 262 x 233 x 83 (10.3" x 9.2" x 3.3")
• Mass of table 6.3 kg (14 lb)

Select from metric or inches digimatic heads when ordering.

NOTE: This is item does not include a Surftest SJ-410 series surface roughness tester. It is available for purchase separately.

Click here for a brochure with information regarding the SJ-410 Surftest Series Surface Roughness Testers.

Mitutoyo parts # 178-185 and 178-186

NOTE: This item is not returnable.
