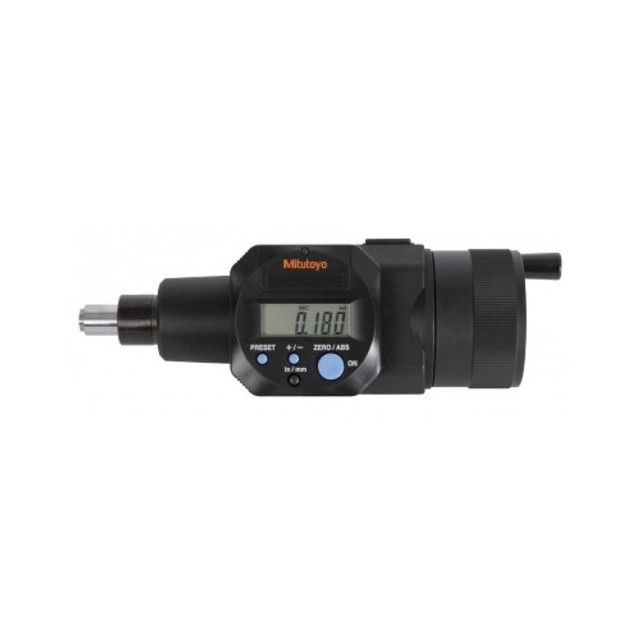

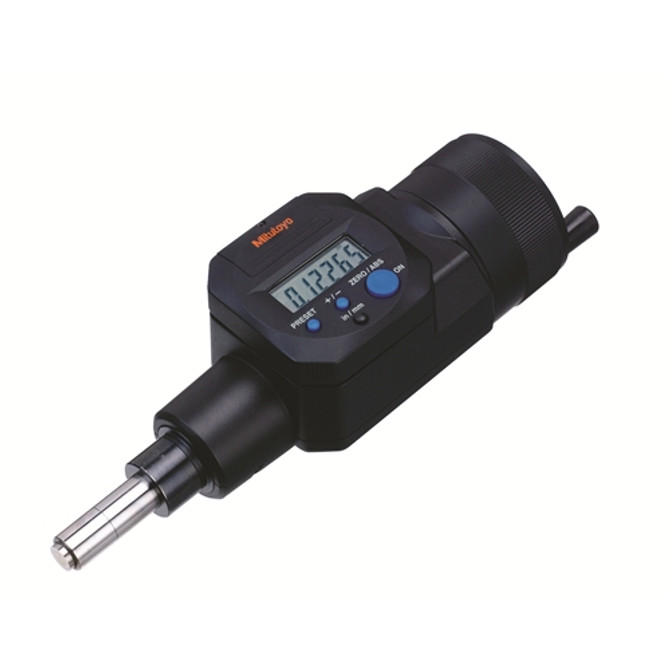

Mitutoyo Digimatic Measuring Microscope Micrometer Heads (mm)

Mitutoyo microscope digimatic micrometer heads for measuring in millimeters. Two digimatic measuring micrometer heads are required for X-Y measuring, one for X-axis and one for Y-axis.

Contact Microscope World for information on having this instrument calibrated.

• Range 50mm
• Resolution 0.001mm
• Instrumental Error +/-0.001mm
• Functions zero set, preset, SPC data output, counting direction switch, absolute/incremental coordinate switch.
• Power Supply SR44 battery (x2 pieces)
• Battery Life 1.8 years under continuous use.

For a complete digimatic system, a digimatic SPC cable is required for each micrometer head and the MIG-2USB interface unit is required for measurement data readouts to a PC.

Mitutoyo part # 164-163

Note: This item is not returnable.
