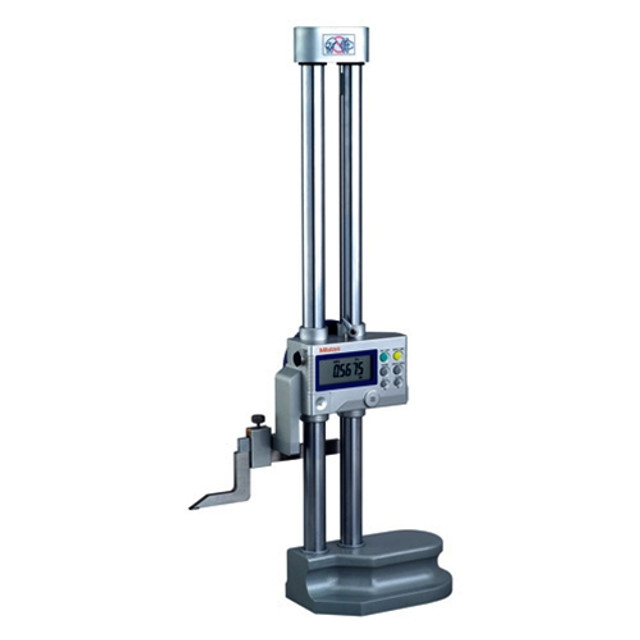

Mitutoyo Digimatic Height Gage Multi-Function Type 0-300mm

This digimatic height gage offers multi-function features including an optional bi-directional touch probe to quickly and accurately measure steps, inside and outside widths.

Contact Microscope World for information on having this instrument calibrated.

• Range 0-300mm
• Accuracy +/- 0.02mm
• Resolution Switchable between 0.01mm and 0.005mm
• Display LCD, 7-digits, character height 11mm
• Data output via SPC
• Max response speed 500mm/s
• Function Two presets, ABS/INC switching, zero-setting, probe tip diameter compensation, -/+ switching, data hold, data output, power on/off, inch/mm conversion.
• Alarm Counting composition error, low voltage
• Standard accessories Includes Carbide-tipped scriber (905200)and scriber clamp (05GZA033)
• Mass 5.7 kgs

Mitutoyo part# 192-663-10
NOTE: This item is not returnable.
