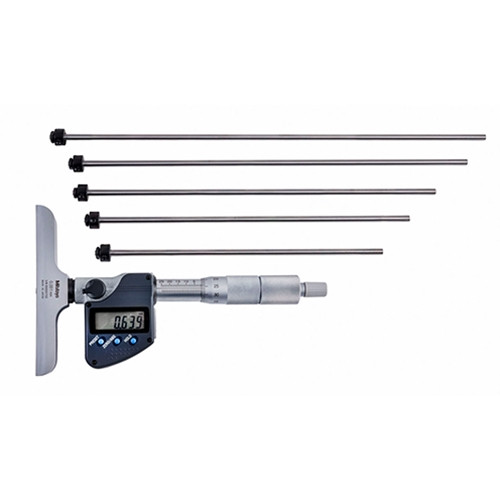

Mitutoyo Digimatic Depth Micrometer 0-150mm

This Mitutoyo digimatic depth micrometer features Ø4mm interchangeable rods which can be adjusted in 25mm increments. There is a ratchet stop for constant force, SPC data output and a measuring rod clamp.

Contact Microscope World for information on having this instrument calibrated.

• Range 0-150mm
• Rod Qty 6 rods
• Accuracy
  • Micrometer head feed = ± 0.00015" / 3µm, ± [0.00008 + (0.0004xR/3)] R=max. measuring length(inch).
  • Interchangeable rod = ± (2+L/75)µm, L=Max measuring length (mm)
• Resolution 0.001mm
• Base size 101.6 x 16mm
• Flatness of reference surface base 2µm
• Flatness of measuring face rod 0.3µm
• Parallelism (4+L/50)µm L=Max measuring length (mm)
• Zero point error of rods 4µm
• Rod diameter 4mm
• Data Output Yes, SPC cable with data switch is available.
• Display LCD
• Battery SR44, battery life approximately 2.4 years under normal use.
• Functions Origin-set, zero/ABS, data hold, function lock, low voltage alarm, counting value composition error alarm.
• Case Includes fitted plastic case.

Mitutoyo Part # = 329-250-32
NOTE: This item is not returnable.
