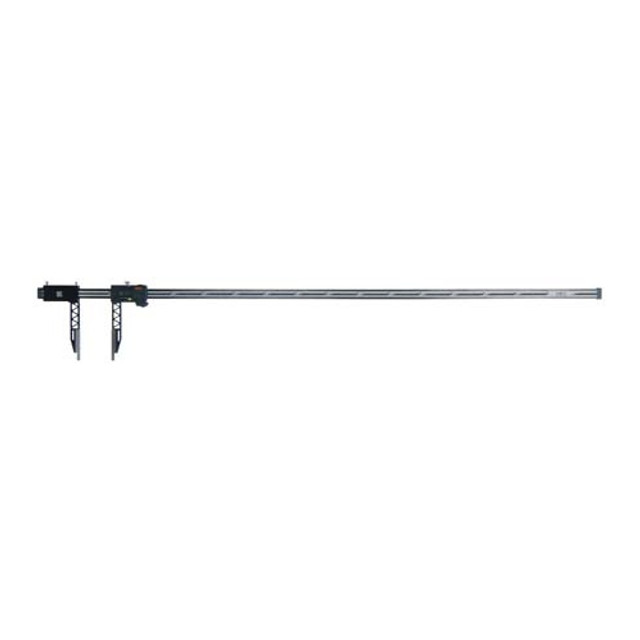

Mitutoyo Digimatic Carbon Fiber Interchangeable Jaw Caliper 0-40" / 0-1000mm

This Mitutoyo ABSOLUTE Digimatic Carbon Fiber Interchangeable Jaw Caliper is lightweight and highly durable. The range of applications can be expanded by using a variety of interchangeable jaws (see below). This digimatic carbon fiber caliper has a direct readout of ID measurements from the LCD screen. Quick and easy exchanging of jaws thanks to the unique clamping system. A pair of clamping wheels is a standard accessory. The ABSOLUTE system scale provides error-free, high-speed measurement with SPC data output. Preset function for setting a desired starting point, which allows direct readout of offset measurements.

Contact Microscope World for information on having this instrument calibrated.

• Range 0-40" / 0-1000mm
• Accuracy +/-0.002"
• Scale Type Absolute electrostatic capacitance type linear encoder
• Display LCD
• Protection IP66
• Functions Origin-set, zero-set, presetting, offsetting, inch/mm conversion, data hold, automatic power on/off, data output, low voltage alarm, counting value composition error alarm
• Battery SR44 (life = appx 3 years)
• Weight 1,480g
• Cable Output Type USB-ITN-A (A) and U-Wave-T SPC Cable (A)
• Included Pair of clamping wheels
• Required =Interchangeable Jaws. Select from the available jaws below:
  • Standard Jaws
  • Inside Point Jaws
  • Surface Plate Jaws
  • Scriber Jaws
  • Centerline Jaws

Mitutoyo Part # = 552-193-10
NOTE: This item is not returnable.
