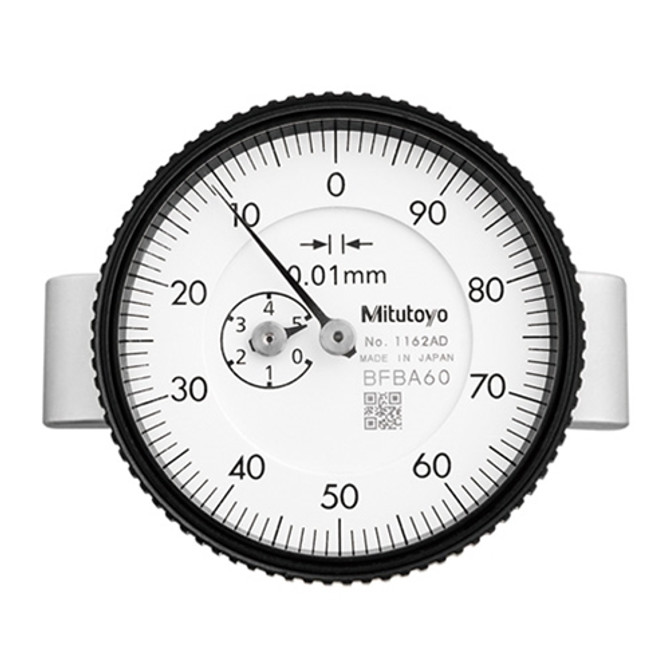

Mitutoyo Dial Indicator Depth Gage 0-200mm, 63.5mm Base with Back Plunger

This rectangular base dial indicator depth gage has a hardened, precision ground and micro-lapped reference face on its base and has a carbide ball contact element.

The gage has the following specifications:

• Range 0-200mm
• Graduation 0.01mm
• Accuracy ± 15 µm
• Length 65mm
• Stroke 5mm
• Probe tip Carbide-tipped ball point
• Included 5 extension rods: 10mm, 20mm, 2 x 30mm, 100mm
• Base Flatness 5 µm
• Base (Width x Thickness) 63.5mm x 16mm
• Mass 200g

NOTE: This item is not returnable.

Mitutoyo part # 7231A
