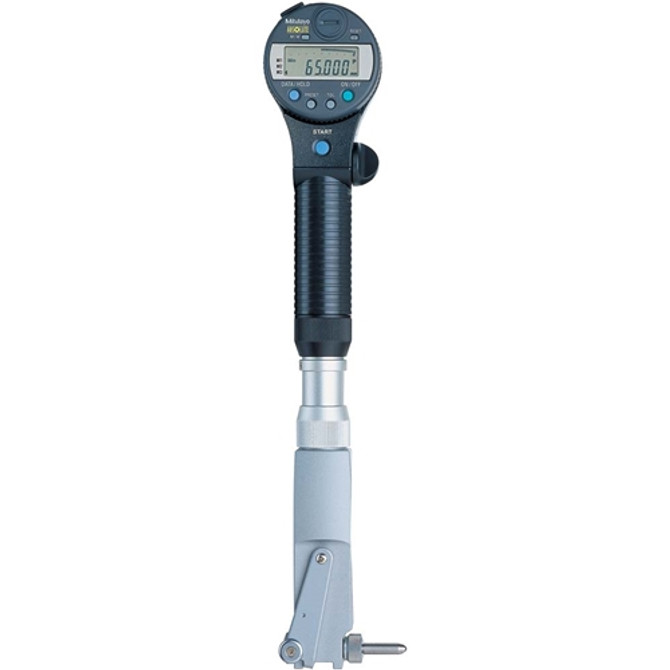

Mitutoyo ABSOLUTE Digimatic Bore Gage 4-6.5" / 100mm-160mm

This Mitutoyo ABSOLUTE digimatic bore gage features a go/no-go judgement function and allows up to three sets of master value and upper/lower tolerance values to be memorized. Mitutoyo Setting Rings can be used to quickly and accurately set bore gages.

Contact Microscope World for information on having this instrument calibrated.

• Range: 4-6.5" / 100-160mm
• Accuracy = Wide Range: 0.003mm / 0.00012"
• Resolution:  0.0005" / 0.001mm
• Data Output: Yes, use SPC cable.
• Stroke of Contact Point: 1.2mm
• Number of Anvils: 13
• Repeatability: +/- 1 digit
• Measuring Force: ≤5 N
• Display: LCD
• Battery: SR44, battery life approximately 1 year under normal use.
• Functions: Origin-set, Zero-Setting, presetting, go/no-go judgment, power on/off, data output.
• Alarm: Low battery voltage, scale contamination, over-flow error, tolerance limit setting error.
• Case: Supplied in fitted wooden case.

Mitutoyo Part # 511-522
NOTE: This item is not returnable.
