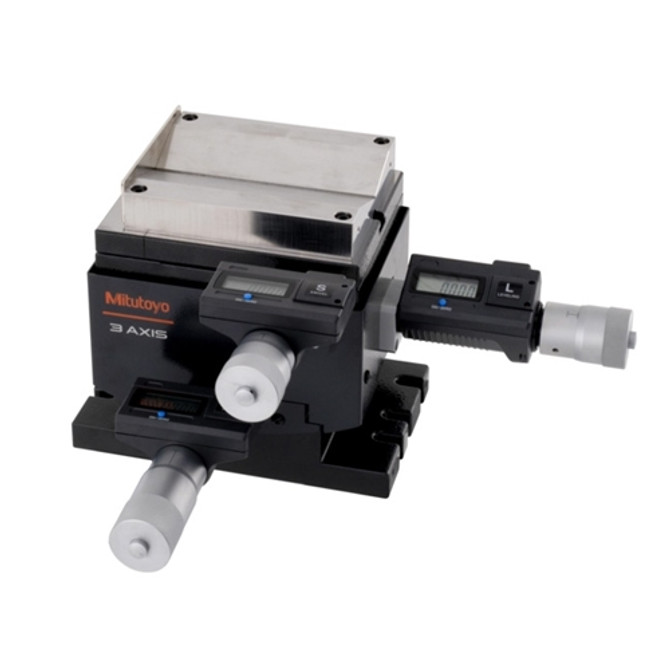

Mitutoyo 3 Axis Adjustment Table for Surftest SJ-410 Series

The Mitutoyo Digital 3 axis adjustment table enables alignment adjustments required when measuring cylindrical surfaces. The corrections for pitch angle and swivel angle are determined from a preliminary measurement, and the digimatic micrometers are adjusted accordingly. This table can also be used to level flat-surfaced workpieces. This level adjustment table is compatible with the Surftest SJ-410 series surface roughness testers.

• Travel range ± 12.5mm
• Leveling adjustment angle range ± 1.5º
• Swivel angle range ± 2º
• Table dimensions 130mm x 100mm
• Maximum load 15 kg
• Total dimensions (W x D x H) mm 262 x 233 x 83 (10.3" x 9.2" x 3.3")
• Mass of table 6.3 kg (14 lb)

NOTE: This is item does not include a Surftest SJ-410 series surface roughness tester. It is available for purchase separately.

Click here for a brochure with information regarding the SJ-410 Surftest Series Surface Roughness Testers.

Mitutoyo part #s 178-182

NOTE: This item is not returnable.
