The MICRACUT 152 precision cutter can cut many materials including metals, ceramics, electronic components, crystals, composites, biomaterials, sintered carbide…
The MICRACUT 152 precision cutter can cut many materials including metals, ceramics, electronic components, crystals, composites, biomaterials, sintered carbide, and minerals. The MICRACUT 152 produces precise and deformation free cuts. It also has high safety standards. The magnetic safety switch ensures that the machine cannot be started while the motor is running, and the motor will stop immediately if the hood is open during cutting. An emergency stop button on the machine immediately stops the motor when pressed.
The MICRACUT 152 has the following specifications:
Cutting disc diameter: up to 175mm
Cutting capacity: up to 50mm diameter
Cutting motor power: 100 W
Disc speed: 50-1500 rpm
Cutting method: chop
Can perform parallel cutting in x-axis, and samples can be positioned up to 25 mm in the x-axis
850 mL integrated cooling unit
Machine Dimensions: 510mm x 430mm x 340mm (20"x17"x13")
Machine Weight: 28 kg (62 lbs)
NOTE: A vise is required for the proper positioning of samples to be cut and must be purchased for this unit to be operational. Select your desired vise when ordering.
A dressing unit for dressing the cutting blades and a cutting table attachment are available for purchase separately.
The following consumables are included with this product: 1 diamond cutting disc (150 mm diameter) and 1 liter of METCOOL II cooling fluid. Links to purchase additional consumables for this product can be found below.
The MICRACUT 152 precision cutter can cut many materials including metals, ceramics, electronic components, crystals, composites, biomaterials, sintered carbide, and minerals. The MICRACUT 152 produces precise and deformation free cuts. It also has high safety standards. The magnetic safety switch ensures that the machine cannot be started while the motor is running, and the motor will stop immediately if the hood is open during cutting. An emergency stop button on the machine immediately stops the motor when pressed.
The MICRACUT 152 has the following specifications:
Cutting disc diameter: up to 175mm
Cutting capacity: up to 50mm diameter
Cutting motor power: 100 W
Disc speed: 50-1500 rpm
Cutting method: chop
Can perform parallel cutting in x-axis, and samples can be positioned up to 25 mm in the x-axis
850 mL integrated cooling unit
Machine Dimensions: 510mm x 430mm x 340mm (20"x17"x13")
Machine Weight: 28 kg (62 lbs)
NOTE: A vise is required for the proper positioning of samples to be cut and must be purchased for this unit to be operational. Select your desired vise when ordering.
A dressing unit for dressing the cutting blades and a cutting table attachment are available for purchase separately.
The following consumables are included with this product: 1 diamond cutting disc (150 mm diameter) and 1 liter of METCOOL II cooling fluid. Links to purchase additional consumables for this product can be found below.

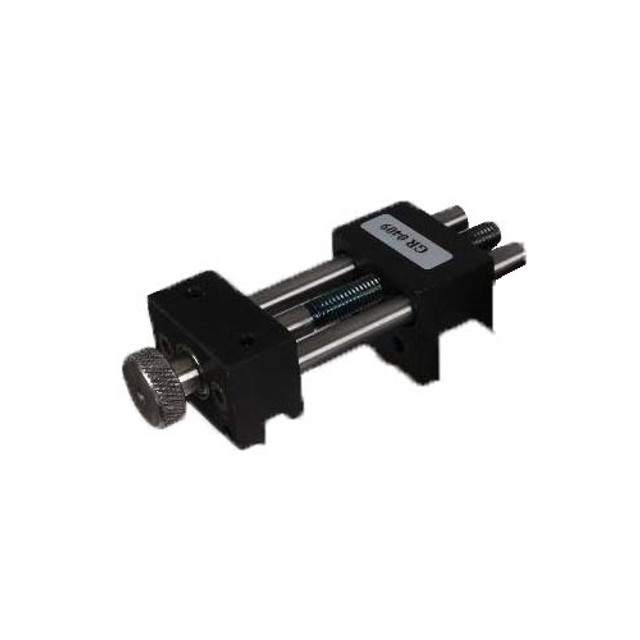

This Metkon dressing unit is for use with the MICRACUT 152 precision cutter. Blade dressing is important to ensure that cuts are of consistent quality. New wheels must be dressed before use, and...
This is a set of spare parts for use with the MICRACUT 152. The following parts are included in this set:
Switch, Qty 1
Digital Micrometer, 0-25, 0.001 mm,Qty 1
10 mm belt, Qty 1
Ø12 pulley...
This Metkon cutting table attachment is for use with the MICRACUT 152 precision cutter. This attachment allows for the safe and easy manual cutting of flat specimens.
Metkon part # GR 0213
NOTE:...
This set of flanges is for use with the MICRACUT 152, 200-S, or 202 Flanges are needed in order to stabilize the cutting wheel on the MICRACUT cutting machine. Blade damage or curved cuts may be...
The Metkon METACUT 302 is an abrasive cutter for the wet cutting of metallographic samples. This unit offers flexibility as it can cut large and small, or regularly and irregularly shaped samples...
