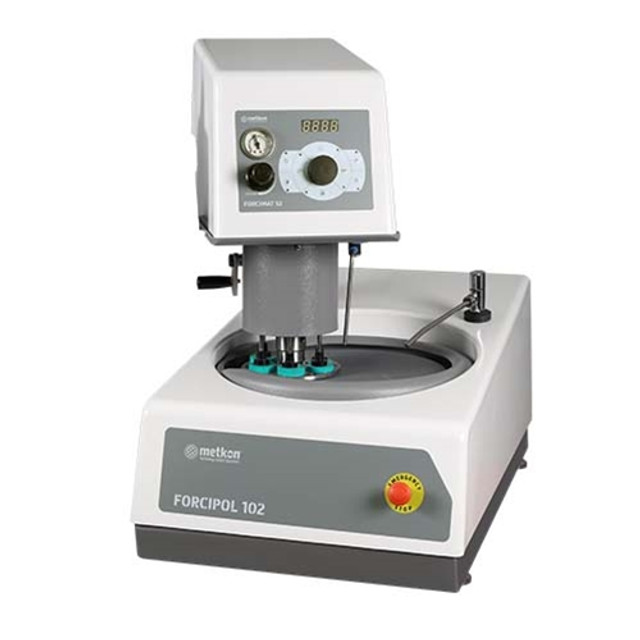

Metkon FORCIPOL102 with FORCIPOL Control Unit

The Metkon FORCIPOL 102 with the FORCIPOL Control unit is designed for grinding and polishing metallographic samples. Three wheel sizes are available for the unit: 200, 250, or 300mm. Choose from a PVC or an aluminum wheel. The aluminum wheel is more rigid than PVC and therefore produces samples with more planarity. The FORCIPOL Control Unit controls the disc speed, the water on/ off, and the start/ stop operation. The FORCIPOL control head requires manual manipulation of specimens during grinding and polishing operations. The FORCIPOL unit has a touch pad front control panel where parameters can be set and has an automatic disc cleaning and drying feature.

The FORCIPOL 102 has the following specifications:

• Number of wheels (select wheel material when ordering): 1 PVC or 1 aluminum
• Wheel diameter (select when ordering): 200mm, 250mm, or 300mm
• Base Motor Power: 1 HP
• Wheel Speed: 50-600 rpm
• Machine Dimensions (includes FORCIPOL Control Unit): 450mm x 740mm x 390mm (18"x 29"x 15")
• Machine Weight: 55 kg (121 lbs)

Included with the system are a splash guard, paper ring, cover for the wheel, and a plexiglass shield. The following consumables are included: a set of 100 grinding papers with various grits, 5 assorted polishing cloths, and diamond suspensions (1µm and 6µm) and lubricant.

View the FORCIPOL Brochure.

NOTE: This item is not returnable.

Metkon part #36 21-200, 36 21-250, 36 21-300, 30 11
