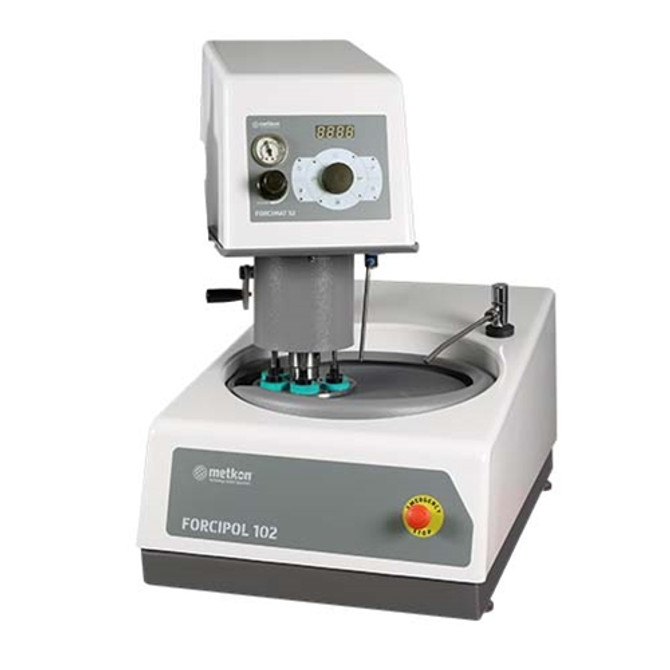

Metkon FORCIPOL102 with FORCIMAT52

The Metkon FORCIPOL 102 with the FORCIMAT 52 Automatic Head is designed for grinding and polishing metallographic samples. Three wheel sizes are available for the unit: 200, 250, or 300 mm. Choose from a PVC or an aluminum wheel. The aluminum wheel is more rigid than PVC and therefore produces samples with more planarity.

The FORCIMAT 52 Automatic head has a sample holder (ordered separately) that can prepare up to 6 samples simultaneously. The samples are prepared using pneumatically applied individual force, and the magnitude of the force applied may be adjusted from the front panel. A variety of sample holders are available with diameters between 25 and 50 mm or 1 and 2 inches. NOTE: A sample holder is required for the operation of the machine but is not included in this system.

The FORCIPOL 102 has the following specifications:

• Number of wheels (select wheel material when ordering): 1 PVC or 1 aluminum
• Wheel diameter (select when ordering): 200mm, 250mm, or 300mm
• Base Motor Power: 1 HP
• Wheel Speed: 50-600 rpm
• Machine Dimensions (includes FORCIMAT52): 450mm x 740mm x 540mm (18"x 29"x 21")
• Machine Weight (includes FORCIMAT52) : 66 kg (145 lbs)

The FORCIMAT 52 Head has the following specifications:

• Control panel with touch pad
• Last parameters retained in memory
• Can be operated manually
• Head motor power: 100W
• Sample motor speed: 5-60N
• Has automatic cleaning and drying and water saving features

Included with the system are a splash guard, paper ring, cover for the wheel, and a plexiglass shield. The following consumables are included: a set of 100 grinding papers with various grits, 5 assorted polishing cloths, and diamond suspensions (1 µm and 6 µm) and lubricant.

View the FORCIPOL and FORCIMAT brochure.

NOTE: This item is not returnable.

Metkon part #36 21-200, 36 21-250, 36 21-300, 30 12
