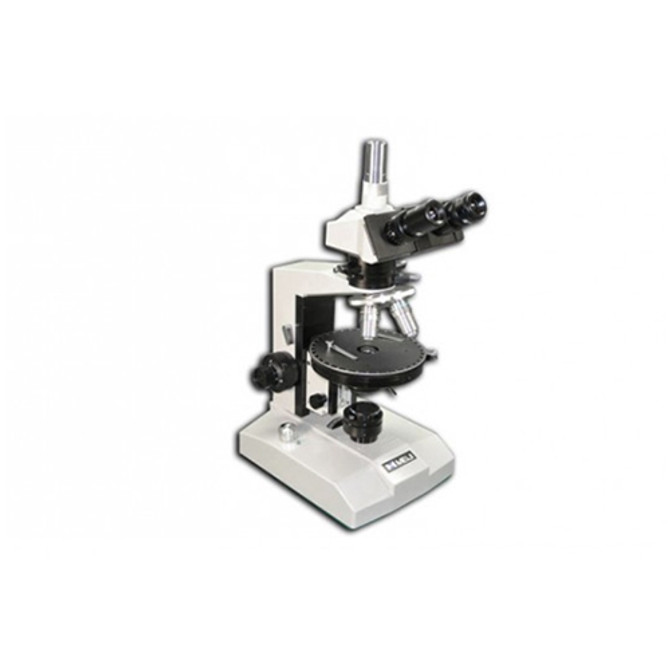

Meiji ML9000 Polarizing Microscope

More polarizing microscope information and images can be found here.

• Objective Lenses: DIN strain free semi plan 4x, 10x, 40xs objectives mounted in ball-bearing quadruple nosepiece with one fixed and three centerable objective apertures.
• Eyepieces: Available in binocular or trinocular head, inclined at 30° with high transmission prism system and (in trinocular version only) beam splitter. Attachment fitting slotted for correct orientation. Dovetail slider inter-ocular adjustment and dioptric compensation facility incorporated in one eyetube. One eyetube slotted for 90° and 45° orientation of cross-line eyepiece.
• Total Magnification: 40x, 100x, and 400x.
• Specimen Stage: Ball-bearing rotating circular stage, 150mm diameter, graduated with vernier, and stage specimen clips.
• Focusing: Graduated, coaxial coarse and fine focusing, with safety stop. Rack and pinion focusing condenser mount.
• Polarizer: Rotatable polarizer in swing-out mount, analyzer and Bertrand lens in sliding mount. Includes Mica 1/4 wave plate and first order red plate.
• Illumination: Koehler base illuminator with 3W LED, 5500K color temperature light source with intensity control. (220/240v AC system also available).
• Light Focusing: Strain free achromat condenser, NA 1.25, with aperture iris diaphragm and swing-out filter holder and blue filter.
• Size & Weight: 480mm (H) x 270mm (L) x 200mm (W), 19.1 lbs.
• Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
