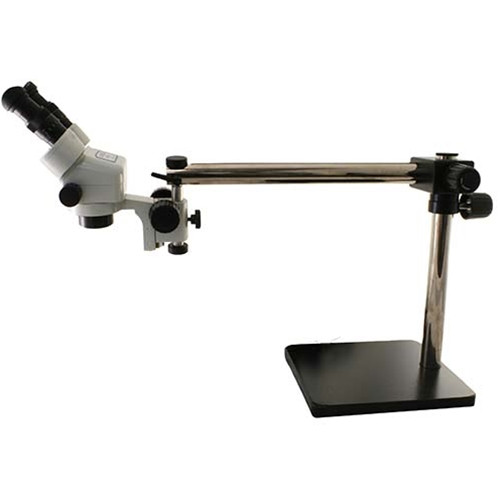

Meiji EMZ5 Stereo Zoom Microscope on Boom Stand

The EMZ5-BMSQ boom stand microscope provides 7x - 45x zoom magnification. Includes LED 4-Quadrant ring light. The complete microscope system includes the following:

• Microscope Body: Stereo binocular zoom microscope body, rotatable 360°, eyetube inclination 45°. Interpupillary distance adjustment from 54mm – 75mm. Dioptric adjustment on the left eyetube. Trinocular version available - directs light to right eyetube and trinocular tube simultaneously when beam splitter is engaged.
• Objectives: Zoom range of 0.7x - 4.5x.
• Zoom Ratio: 6.5:1
• Zoom Control: Dual, graduated, bilateral mount
• Working Distance: 93mm.
• Magnification: 7x-45x with 10x eyepieces (included). For other magnifications, eyepieces are available for purchase separately. Refer to the magnification chart below for magnification options.
• Eyepieces: Includes 10x eyepieces (accepts 25mm reticle). Note: 5x, 12.5x, 15x, 20x, and 30x eyepieces are available for order separately below. (All accept 25mm reticle except for 5x & 30x).
• Supplemental objectives and eyepieces:
  • View magnification chart below for options for adjusting WD and magnification.
  • Extended Magnification Range: 2.1x – 270x
  • Extended Working Distances: 34 - 251mm
• Microscope Stand: Boom stand with pin mount post for focusing holder. Base dimensions: 259mm (10.2") x 290mm (11.4") x 28mm (1.1"). Maximum distance from the vertical post to the end of the base is 227mm (8.9"). Base has rubber feet on the bottom. Vertical Post: Outside Diameter is 37mm. Vertical post is 383mm (15.1") tall. The vertical post has a lock ring on it. Horizontal Post: Outside Diameter is 35mm. Horizontal post is 540mm (21.25") long.
• Focusing Holder: Pin mount with coarse focusing.
• Illumination: LED 4 quadrant ring light has 72 LED lights and offers cool, bright illumination. Four quadrant zones can be turned on or off with push of a button, which is ideal for reducing glare.
• Included: Microscope includes owner's manual and dust cover.
• Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
