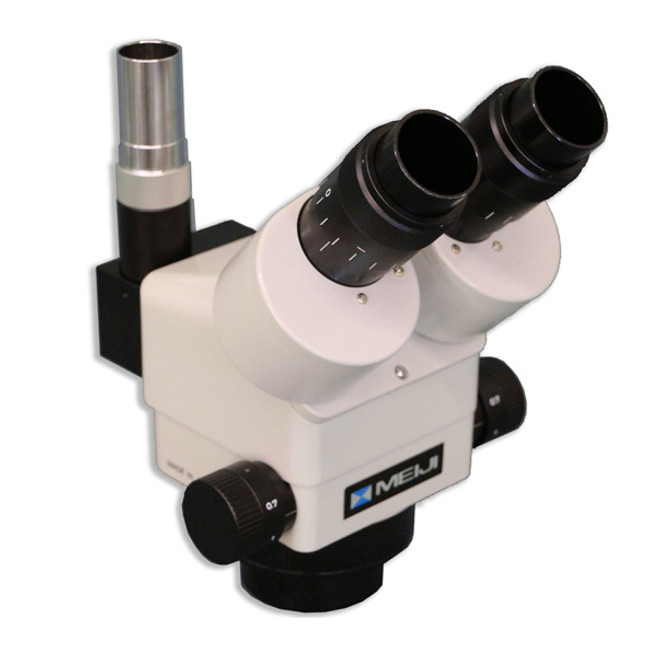

Meiji EMZ-8TR Trinocular Zoom Stereo Body

Greenough optical system offers a 6.5:1 zoom ratio and provides exceptional image quality and excellent depth of field. The EMZ-8TR trinocular body directs light to all three viewing ports simultaneously. C-Mount adapters designed especially for this microscope can be purchased separately. The trinocular stereo zoom body includes the following:

• Body: Trinocular with rugged all-metal body design, rotatable 360°.
• Objective Zoom Range: 0.7x - 4.5x.
• Magnification: 7x - 45x (when using 10x eyepieces - MA502). View the magnification chart below to determine which eyepieces and auxiliary lens you may need.
• Field of View: 32mm at 7x, 5.1mm at 45x.
• Working Distance: 104mm.
• Eyetube Inclination: 45°.
• Interpupilliary Distance Adjustment: 54mm - 75mm.
• Dioptric Adjustment: Both eyetubes.
• Extended Magnification Range: 2.1x - 270x.
• Extended Working Distance: 2.45mm - 202.5mm (with optional auxiliary lens).
• Accurate Measuring: If you need to make accurate measurements, please call us to ensure you get the proper stereo microscope body with detent capability.
