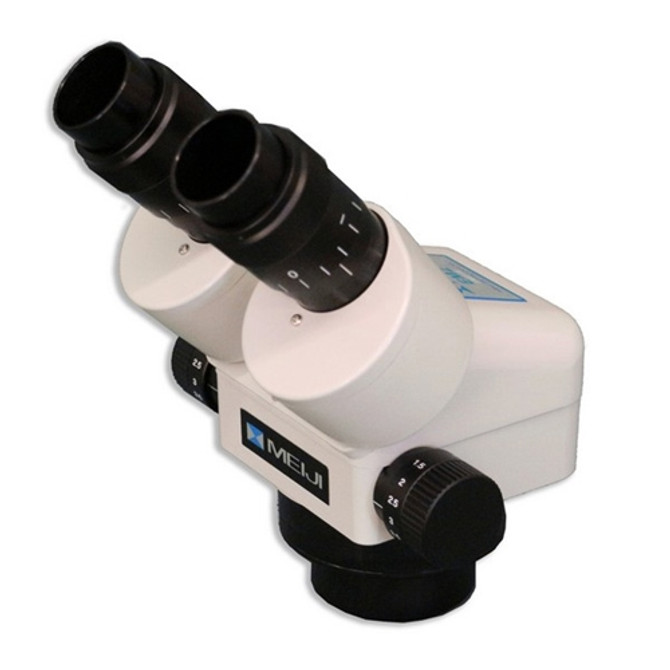

Meiji EMZ-5 Zoom Stereo Microscope Body

No reviews yet Write a Review

Greenough optical system offers a 6.5:1 zoom ratio and provides exceptional image quality and excellent depth of field. The binocular or trinocular stereo zoom …

SKU:

$1,410.00 - $1,810.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

Greenough optical system offers a 6.5:1 zoom ratio and provides exceptional image quality and excellent depth of field. The binocular or trinocular stereo zoom body includes the following:

Body: Binocular with rugged all-metal body design, rotatable 360°. Trinocular version has a beam splitter that directs light to the right eyetube and trinocular port simultaneously.
Objective Zoom Range: 0.7x - 4.5x.
Magnification: 7x - 45x (when using 10x eyepieces - MA502). View the magnification chart below to determine which eyepieces and auxiliary lens you may need.
Field of View: 32mm at 7x, 5.1mm at 45x.
Working Distance: 93mm.
Eyetube Inclination: 45°.
Interpupillary Distance Adjustment: 54mm - 75mm.
Dioptric Adjustment: Both eyetubes.
Extended Magnification Range: 2.1x - 270x.
Extended Working Distance: 34mm - 251mm (with optional auxiliary lens).

Meiji Stereo Microscope Magnification Chart

Aux Lens	Working Dist. (mm)	SWF10x Eyepieces		SWF12.5x Eyepieces		SWF15x Eyepieces		SWF20x Eyepieces		SWF30x Eyepieces
Aux Lens	Working Dist. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)
None	93	7x- 45x	32.8- 5.1	8.75x- 56.25x	28.5- 4.4	10.5x- 67.5x	22- 3.4	14x- 90x	16.4- 2.5	21x- 135x	11- 1.7
0.3x	251	2.1x- 13.5x	109- 17	2.62x- 16.87x	95- 14.6	3.15x- 20.25x	73- 11.4	4.2x- 27x	54.7- 8.5	6.3x- 40.5x	36.6- 5.7
0.44x	171	3.08x- 19.8x	74.5- 11.5	3.85x- 24.75x	64.7- 10	4.62x- 29.7x	50- 7.7	6.16x- 39.6x	37.2- 5.9	9.24x- 59.4x	25- 3.8
0.5x	148	3.5x- 22.5x	65.7- 10.2	4.37x- 28.12x	57- 8.8	5.25x- 33.75x	44- 6.8	7x- 45x	32.8- 5.1	10.5x- 67.5x	22- 3.4
0.75x	97	5.25x- 33.75x	43.8- 6.8	6.56x- 42.18x	38- 5.8	7.87x- 50.62x	29.3- 4.5	10.5x- 67.5x	21.9- 3.4	15.75x- 101.25x	14.6- 2.2
1.5x	49	10.5x- 67.5x	21.9- 3.4	13.12x- 84.37x	19- 2.9	15.75x- 101.25x	14.6- 2.2	21x- 135x	10.9- 1.7	31.5x- 202.5x	7.3- 1.1
2.0x	33	14x- 90x	16.4- 2.5	17.5x- 112.5x	14.2- 2.2	21x- 135x	11- 1.7	28x- 180x	8.2- 1.2	42x- 270x	5.5- 0.8
