Meiji EMZ-5 Stereo Zoom Microscope System

This Meiji stereo microscope provides 7x - 45x zoom magnification on a post stand with LED ring light. The microscope is made in Japan. The complete microscope system includes:

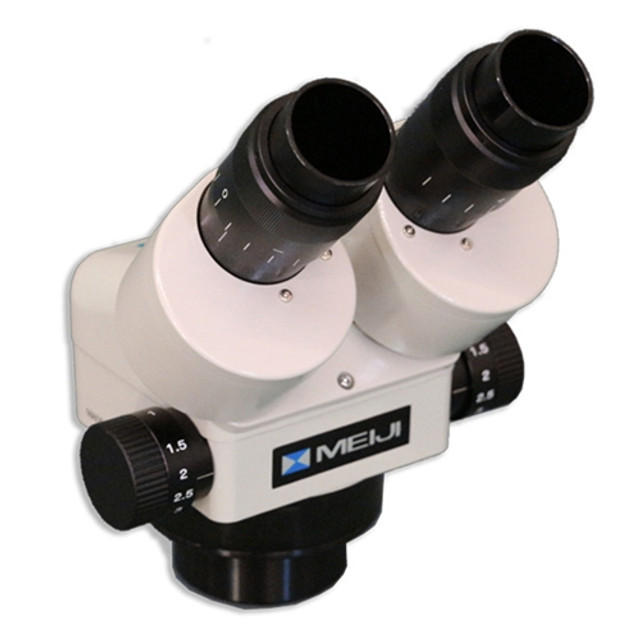

• Microscope Body: Stereo binocular zoom microscope body, rotatable 360°, eyetube inclination 45°. Interpupillary distance adjustment from 54mm – 75mm. Dioptric adjustment on the left eyetube. Trinocular version is available - trinocular head has a beam splitter that directs illumination to the right eyetube and trinocular tube simultaneously. Select binocular or trinocular body when ordering.
• Objectives: Zoom range of 0.7x - 4.5x.
• Zoom Ratio: 6.5:1
• Zoom Control: Dual, graduated, bilateral mount
• Working Distance: 93mm.
• Magnification: 10x eyepieces are included, but additional eyepieces are available for purchase separately (12.5x, 15x, 20x, 30x). See the magnification chart below for magnification parameters.
• Supplemental objectives and eyepieces can provide:
  • Extended Magnification Range: 2.1x – 270x
  • Extended Working Distances: 34 - 251mm.
• Microscope Stand: Pole stand with focusing slide block, reversible white and black stage plate, two stage clips. Pole = 8.35".
• Illumination: LED Ring Light. Includes adapter to mount ring light to microscope body.
• Included: Microscope includes eyeshields, owner's manual and dust cover.
• Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
