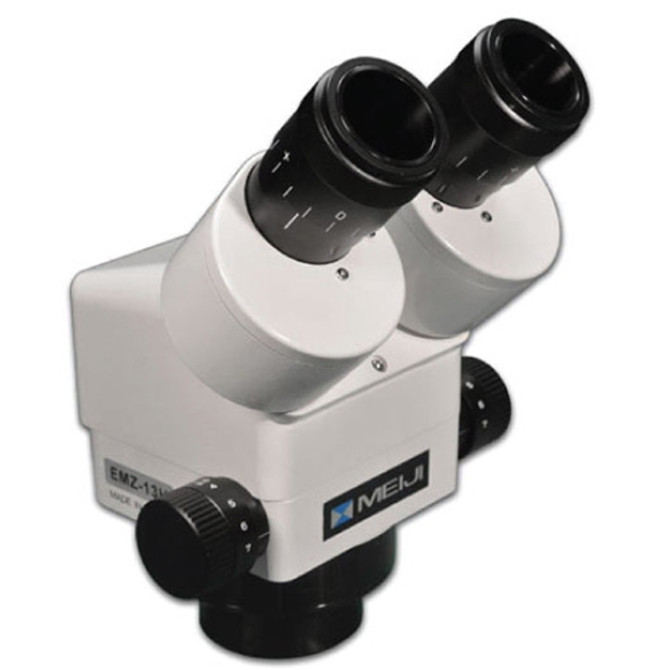

Meiji EMZ-13 Zoom Stereo Microscope Body

Meiji EMZ-13 Zoom Stereo Microscope Body

No reviews yet Write a Review

Greenough optical system offers a 7:1 zoom ratio and provides exceptional image quality and excellent depth of field. The binocular or trinocular stereo zoom bo…

SKU:

$1,890.00 - $2,210.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

Greenough optical system offers a 7:1 zoom ratio and provides exceptional image quality and excellent depth of field. The binocular or trinocular stereo zoom body includes the following:

Body: Choose from a binocular or trinocular body when ordering. Binocular head has a rugged all-metal body design and is rotatable 360°. The trinocular version body additionally has a beam splitter that directs light to the right eyetube and trinocular port simultaneously.
Objective Zoom Range: 1.0x - 7.0x.
Magnification: 10x - 70x (when using 10x eyepieces - MA502). Note: Eyepieces are not included but are available for purchase separately. View the magnification chart below to determine which eyepieces and auxiliary lens you may need.
Field of View: 22mm at 10x, 3.1mm at 70x.
Working Distance: 90mm.
Eyetube Inclination: 45°.
Interpupillary Distance Adjustment: 54mm - 75mm.
Dioptric Adjustment: Both eyetubes, ± 5 diopters.
Extended Magnification Range: 3x - 315x.
Extended Working Distance: 48mm - 230mm (with optional auxiliary lens).

Meiji EMZ-13B, EMZ-13TR

Meiji Stereo EMZ-13 Microscope Magnification Chart

Aux Lens	Working Dist. (mm)	SWF10x Eyepieces		SWF12.5x Eyepieces		SWF15x Eyepieces		SWF20x Eyepieces		SWF30x Eyepieces
Aux Lens	Working Dist. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)	Total Mag.	Field Diam. (mm)
None	90	10x- 70x	22- 3.1	12.5x- 87.5x	17.6- 2.5	15x- 105x	14.7- 2.1	20x- 140x	11- 1.6	30x- 210x	7.3- 1.1
0.3x	230	3x- 21x	73.3-10.5	3.75x- 26.25x	58.7-8.34	4.5x- 31.5x	48.9-7	6x- 42x	36.7-5.2	9x- 63x	24.4-3.5
0.44x	167	4.4x- 30.8x	50- 7.1	3.85x- 24.75x	40- 5.7	6.6x- 46.2x	33.3- 4.8	8.8x- 61.6x	25-3.6	13.2x- 92.4x	16.7- 2.4
0.5x	139	5x- 35x	44-6.3	4.37x- 28.12x	35.2- 5	7.5x- 52.5x	29.3- 4.2	10x- 70x	22-3.1	15x- 105x	14.7-2.1
0.75x	92	7.5x- 52.5x	29.3- 4.2	6.56x- 42.18x	29.3-3.4	11.3x- 78.75x	19.6- 2.8	15x- 105x	14.7- 2.1	22.5x- 157.5x	9.8- 1.4
1.5x	48	15x- 105x	14.7- 2.1	13.12x- 84.37x	14.7- 1.7	22.5x- 157.5x	9.8- 1.4	30x- 210x	7.3- 1.05	45x- 315x	4.9- 0.7
