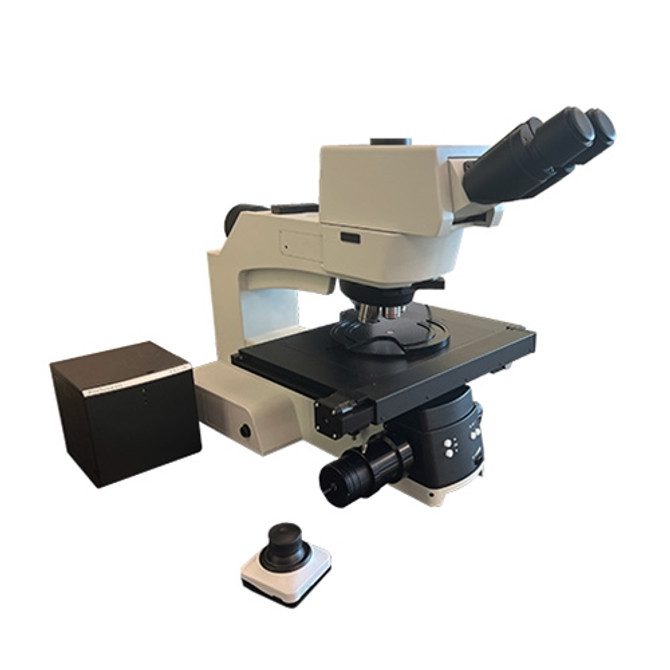

M50-12 NIR Wafer Microscope

The Fein Optic M50-12 NIR wafer microscope has NIR objectives and a manual stage.

• Objective Lenses: Includes the following Infinity Corrected Plan Semi Apochromat NIR lenses:
  • Plan Semi Apo NIR 5x, NA = 0.15, WD = 19.5mm
  • Plan Semi Apo NIR 10x, NA = 0.30, WD = 12.2mm
  • Plan Semi Apo NIR 20x, NA = 0.45, WD = 7.3mm
  • Plan Semi Apo NIR 50x, NA = 0.70, WD = 2.7mm
• Viewing Head: Has near infrared with 30º tilting trinocular upright and erect viewing head. Beam splitting ratio: 100:0 or 0:100. Interpupillary distance adjustable from 50mm-76mm. Includes 0.5x c-mount adapter.
• Eyepieces: Widefield focusing eyepieces PL10x/23mm, with reticle retaining ring for a 26mm reticle.
• Frame: Sturdy metal frame with Reflected light. Shock proof frame features front located control buttons to operate the motorized nosepiece, illumination adjustments, and aperture diaphragm adjustments.
• Focusing: Low position coaxial focus mechanism, coarse range: 35mm, fine precision: 0.001mm. Upper limit and tension adjustment. Built-in 100-240V wide voltage system.
• Nosepiece: Motorized sextuple nosepiece.
• Total Magnification: 50x, 100x, 200, 500x
• Specimen Stage: Non motorized manual stage has an X/Y travel range of 356mm x 305mm and includes a 12" wafer holder.
• Illumination: 150W halogen illuminator has 36" fiber optical light guide and 3 extra bulbs for enhanced NIR spectral output. Has collimating adapter for fiber light guide.
• Polarization: Includes polarizer for reflected light and 360º rotatable analyzer.
• NIR Filters: Includes band pass  filters with wavelengths of 1100nm, 1200nm, and 1300nm.
• Camera: Camera has Sony IMX464 sensor measuring 1/1.8" with 2.9 x 2.9 µm pixels. Camera has 4 megapixel resolution and a USB3 connection for connecting to a computer. (Computer is not included.) Includes image management software.
• Size (not including camera): 809mm (31.85") D x 574mm (22.59") H x 718mm (28.26") W
