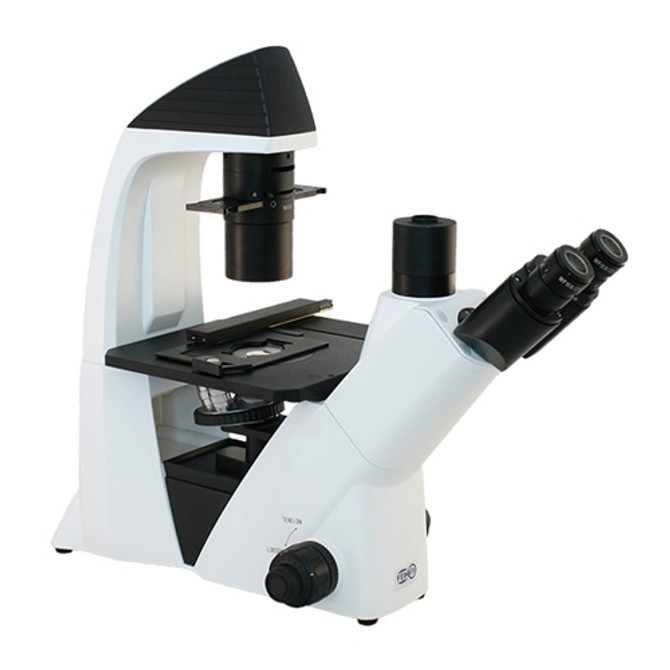

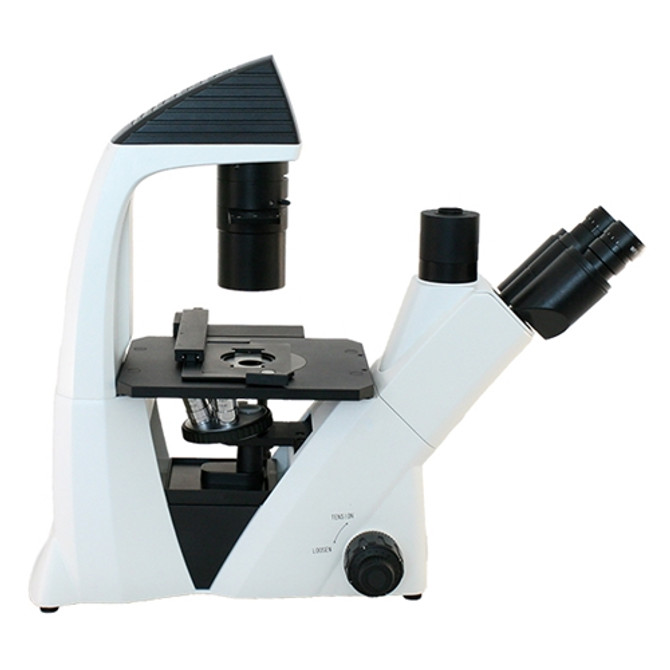

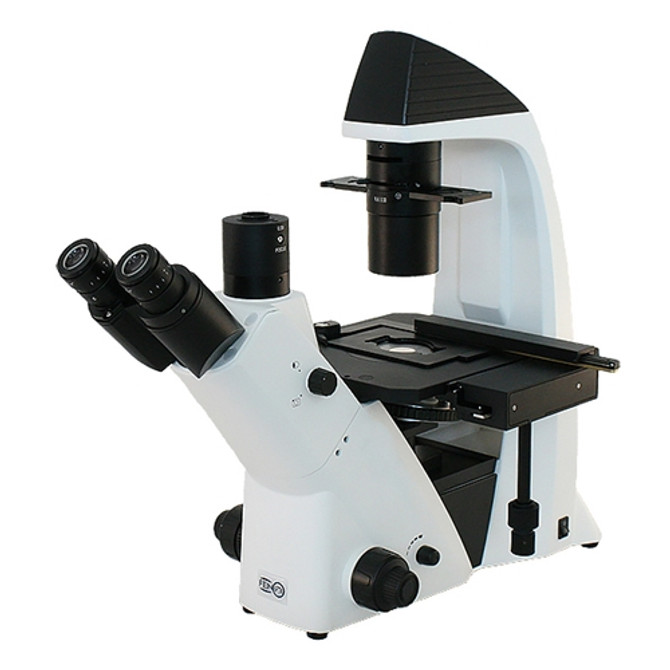

IRB20 Inverted Biological Microscope
The Fein Optic iRB20 inverted microscope was designed for working with samples in a liquid medium. The condenser is equipped with a 3-position phase slider with…
SKU:
iRB20
$4,995.00
$4,495.00
The Fein Optic iRB20 inverted microscope was designed for working with samples in a liquid medium. The condenser is equipped with a 3-position phase slider with 10x Phase, 20x/40x Phase and Brightfield.
- Optical System: Infinity Color Corrected Optical System.
- Viewing Head: 45º inclined siedentopf trinocular head, interpupillary distance adjustable from 48~76mm, diopter adjustable.
- Eyepieces: Widefield 10x, high eyepoint plan eyepieces, FN23. Reticle retaining ring for 26mm diameter reticle.
- Objective Lenses:
- Infinity Corrected LWD Plan Achromat 4x, NA 0.11.
- Infinity Corrected LWD Plan Achromat Phase Contrast 10x, NA 0.25, WD = 4.3mm.
- Infinity Corrected LWD Plan Achromat Phase Contrast 20x, NA 0.40, WD = 8mm.
- Optional Lens:
- Infinity Corrected LWD Plan Achromat Phase Contrast 40x, NA 0.60, WD = 3.5mm.
- Nosepiece: Revolving quintuple nosepiece.
- Total Magnification: 40x, 100x, 200x.
- Specimen Stage: Fixed stage measures 227mm x 208mm. Mechanical stage with 114mm (X) x 77mm (Y) travel with holder for slide, 55mm Ø Petri Dish Holder.
- Focusing: Low position coaxial focusing system with tension adjustment.

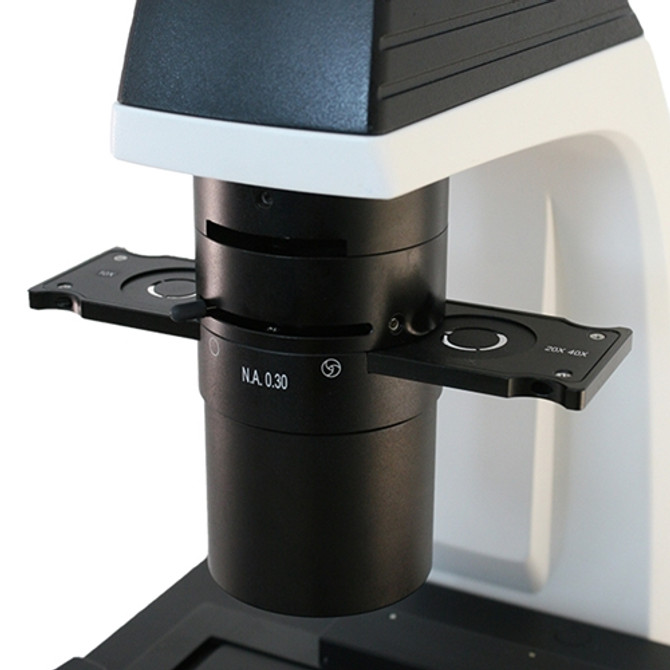

- Condenser: Extra long working distance condenser, NA 0.3, WD = 55mm. With iris diaphragm and slot for phase slider.
- Illumination: 5W LED Illumination.
- Phase Contrast: Includes phase slider for 10x, 20x/40x phase and brightfield, along with phase centering telescope.
- C-Mount Adapter: Includes 0.5x c-mount adapter.
- Dimensions: 20" D x 9.75" W x 21" H
- Warranty: 5 years
- View the iRB20 Microscope Manual.
View the iRB20 Microscope Brochure.
Frequently Bought Together
Please choose options for all selected products
Description
The Fein Optic iRB20 inverted microscope was designed for working with samples in a liquid medium. The condenser is equipped with a 3-position phase slider with 10x Phase, 20x/40x Phase and Brightfield.
- Optical System: Infinity Color Corrected Optical System.
- Viewing Head: 45º inclined siedentopf trinocular head, interpupillary distance adjustable from 48~76mm, diopter adjustable.
- Eyepieces: Widefield 10x, high eyepoint plan eyepieces, FN23. Reticle retaining ring for 26mm diameter reticle.
- Objective Lenses:
- Infinity Corrected LWD Plan Achromat 4x, NA 0.11.
- Infinity Corrected LWD Plan Achromat Phase Contrast 10x, NA 0.25, WD = 4.3mm.
- Infinity Corrected LWD Plan Achromat Phase Contrast 20x, NA 0.40, WD = 8mm.
- Optional Lens:
- Infinity Corrected LWD Plan Achromat Phase Contrast 40x, NA 0.60, WD = 3.5mm.
- Nosepiece: Revolving quintuple nosepiece.
- Total Magnification: 40x, 100x, 200x.
- Specimen Stage: Fixed stage measures 227mm x 208mm. Mechanical stage with 114mm (X) x 77mm (Y) travel with holder for slide, 55mm Ø Petri Dish Holder.
- Focusing: Low position coaxial focusing system with tension adjustment.
- Condenser: Extra long working distance condenser, NA 0.3, WD = 55mm. With iris diaphragm and slot for phase slider.
- Illumination: 5W LED Illumination.
- Phase Contrast: Includes phase slider for 10x, 20x/40x phase and brightfield, along with phase centering telescope.
- C-Mount Adapter: Includes 0.5x c-mount adapter.
- Dimensions: 20" D x 9.75" W x 21" H
- Warranty: 5 years
- View the iRB20 Microscope Manual.
View the iRB20 Microscope Brochure.
