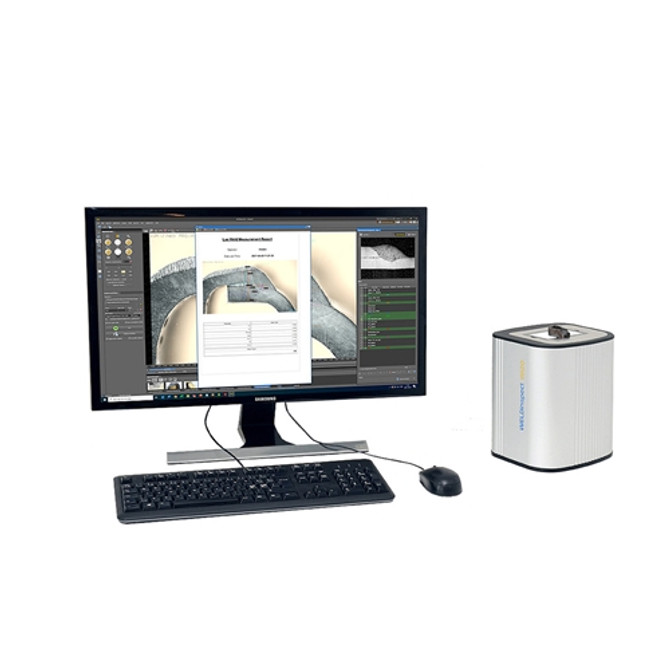

Inspectis WELDinspect UHD-4K Digital Inverted Microscope
The WELDinspect UHD-4K digital inverted microscope is an all in one optical inspection system that features a large field of view range and auto focus motorized…
The WELDinspect UHD-4K digital inverted microscope is an all in one optical inspection system that features a large field of view range and auto focus motorized zoom lens making it an ideal system for weld bead measurement, analysis, and documentation. Integrated imaging software includes tools for image processing, graphics overlays, calibrated measurement and reporting.
Magnification: 7 - 196x on screen magnification
Field of View: ~ 3 to 82mm
Auto Focus: High resolution motorized zoom with auto-focus. Improves workflow and ease-of-use as operator does not have to repeatedly refocus the sample during observation or measurement.
Illumination: Built-in large aperture white LED ring light with diffuser and crossed polarizer filter set.
Camera and Lens Controls: Zoom, Iris, Manual/Auto focus, Manual/Auto brightness, contrast, gain, clarity, white balance, NIR-mode.
Ergonomic Design: Prepared samples are placed directly on the aperture window, eliminating operator eye strain as no eyepieces are required to examine samples.
Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing. Includes 5 hardened glass windows.
Camera: 8.3MP Full HD resolution image and video capture.
Pixel Size: 1.62µm x 1.62µm
Software: Inspectis Basics Software features:
Live image with freeze frame
Capture still images and video
Digital zoom
Calibrated measurement thru zoom range
Pre-set for different magnification levels
Lens distortion correction
Flip image, vertical & horizontal
Distance measurement
Annotation
Object count
Overlay crosshair or grid
Saved image folders
Computer / Monitor: Computer with 21" HD monitor.
Input / Output: 5P MiniDin power input, HDMI video output, 8P MiniDin PC communication
