The Inspectis U30s 4K direct to monitor gantry system features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom on an industrial grade XY travel…

Read more
SKU:
$13,372.00 - $14,320.00
Hurry up! Current stock:
Request a quote
Description

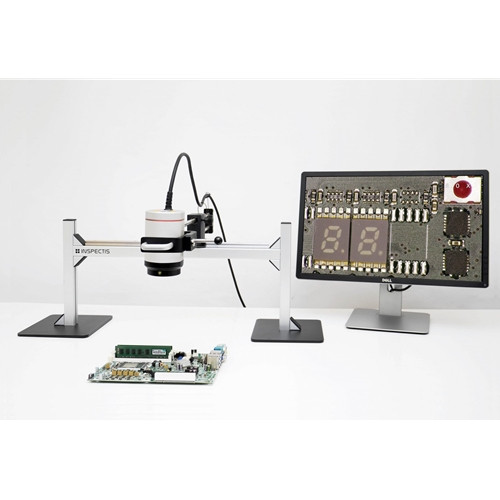

The Inspectis U30s 4K direct to monitor gantry system features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom on an industrial grade XY travel table top gantry stand designed for the inspection of large samples. This plug and play system has an on-board camera and lens controls paired with a 27" 4K monitor and USB image and video capture device making it ideal for optical inspection work.

  • Video Output: 4K Ultra HD 2160p/30 fps switchable to FHD 1080p/60pfs
  • Imager: 8.5 MP, 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
  • Pixel Size: 1.62µm x 1.62µm
  • Lens: High resolution motorized 30:1 zoom range with auto focus, iris control and pre-calibrated optics with automatic zoom tracking.
  • Camera and lens control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
  • Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
  • Capture Device: USB image and video capture device for recording and storing images and videos.
  • Illumination: Inspectis White LED Ring Light with 8 high power LEDs with 5800 K color temperature and detachable diffuser. Illumination controls for soft, smooth light adjustment. The ring light is powered directly through the AUX output of the Inspectis digital microscope.
  • Stand: Industrial grade XY travel table top gantry stand available in two sizes with optional 4 direct tilt attachment:
    • Standard: X-travel 100mm - 750mm / Y-travel 100mm - 550mm
    • Long range Y- travel: X-travel 100mm - 750mm / Long range Y-travel 551mm  - 800mm.
    • Optional 4 direction tilt unit for +/- 30º slope angels. Designed for side viewing of samples.
    • Motorized options are available. Contact Microscope World for details.
  • Monitor: 27" 4K monitor with 3840 x 2160 resolution.
  • Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
  • Manufactured in Sweden.
Zoom Factor Magnification on 27" LCD Optical Magnification
 1 1.8 0.6
5 9.8 3.2
10 18.9 6.2
15 29.0 9.5
20 38.8 12.7
30 64.1 21
30 +1 79.4 26
30 +2 91.6 30
30 +3 106.9 35
30 +5 140.5 46
30 +10 201.5 66
10 +28 131.3 43
30 +28 436.7 143
10 +56 226 74
30 +56 754.2 247

NOTE: This item is not returnable.
