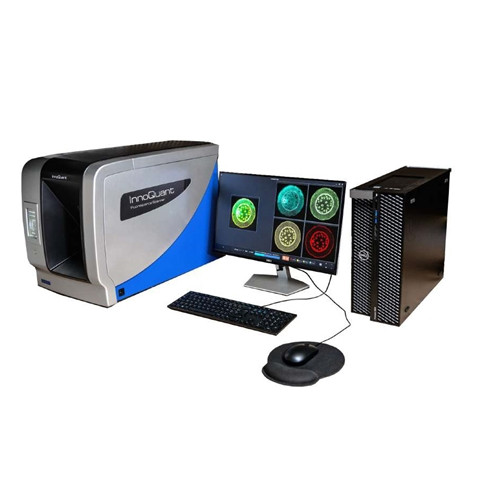

InnoQuant Fluorescence Slide Scanner

Name: InnoQuant Fluorescence Slide Scanner
SKU: IQ-AL-System
Availability: OutOfStock

No reviews yet Write a Review

The InnoQuant fluorescence whole-slide cell and tissue slide scanner provides a unique slide technology using laser scanning and pixel by pixel detection. Four …

SKU: IQ-AL-System

Request a quote

Description

The InnoQuant fluorescence whole-slide cell and tissue slide scanner provides a unique slide technology using laser scanning and pixel by pixel detection. Four colors are simultaneously scanned producing quick time results in 17 minutes for a 3.2cm² area with no post-processing.

InnoQuant Fluorescence Slide Scanner Specifications
Laser Excitation Wavelength	375nm	488nm	561nm	640nm
Emission Filters	FF01-440/40	FF01-513/17	FF01-593/40	FF01-680/42
Emission Filters	For customization: 6 additional position filters for each PMT
Compatible Fluorophores	DAPI Alexa Fluor 350 Hoechst DyLight 350 Coumarin BV421/BV510 BV603/BV711 BV750 PacificBlue® CascadeBlue®	FITC Alexa Fluor 488 GFP Cy2 DyLight 488	TRITC Alexa Fluor 561 Cy3 DyLight 594 MitoTracker® Red	DRAQ 5 Alexa Fluor 647 Cy5 DyLight 650 MitoTracker® Deep Red

Detection Type: 4 independent photomultipliers (PMT)
PMT Gain: Linear from 0.01 to 100%
Acquisition Mode: 4-color simultaneous acquisition
Focus Mode: 3 different focus options - autofocus, fixed focus, focus by content
Slide Size: Compatible with standard microscopy slides - 26 x 76mm (1" x 3"), Maximum thickness 1.8mm
Loader Capacity: 24-slide loader or single slide
Scanning Area: Adjustable up to 26 x 76mm (1" x 3")
Scanning Time: 17 min for a scan area of 18 x 18mm/ 0.70 x 0.70" at pixel size 0.5µm
Pixel Size: From 40 - 0.5µm
Image Format: Non-proprietary image format (multi-resolution TIFF)
Barcode Reader: Automatic barcode reading
Computer: Includes scanner computer system
Analysis Software Compatibility: Matlab, QuPath, Omero, CellProfiler, icy, Orbit, HSAnalysis, arivis, Aivia, Oxford Instruments, Imaris, Amira, Knime, Halo, Viopharm, Tissuegnostics, Mikaia, mbf, micro Dimensions.
Power Supply: 240 VAC, 1.2A, 50~60 Hz
Size / Weight: 429mm W x 696mm D x 521mm H (16.9" W x 27.4" D x 20.5" H), 52 kg (115 lbs)
View the InnoQuant flyer
View the InnoQuant Fluorescence Slide Scanner Brochure
