The IMA/USP 788 automated pharmaceutical microscope is equipped with a motorized X/Y/Z stage that includes a controller, joystick, and specimen holder. Both episcopic brightfield internal illumination and external auxiliary illuminator are provided. This microscope meets IMA/USP 788 standards for the Microscopic Particle Count Test.
- Objective Lens: Objectives are mounted in reversed quintuple nosepiece. DIN Infinity Corrected Optical System (ICOS) and include the following:
- LWD Plan Achromat Metallurgical 5x, NA 0.15, WD 10.8mm
- LWD Plan Achromat Metallurgical 10x, NA 0.30, WD 12.2mm
- LWD Plan Achromat Metallurgical 20x, NA 0.45, WD 4mm
- LWD Plan Achromat Metallurgical 50x, NA 0.55, WD 7.9mm
- Viewing Head: 30° inclined gemel trinocular viewing head with interpupillary adjustment of 54mm - 75mm. Diopters +/-5 on each eyetube. Ergonomic head is available, please call for details.
- Eyepieces: High eyepoint widefield plan 10x eyepieces F.N. 22 are standard. Right eyepiece includes a custom IMA/USP 788 counting chamber reticle that has been made to work with the specific microscope magnification factor and calibrated using a NIST certified stage micrometer.
- Reticle: Includes IMA/USP 788 counting chamber reticle that has been manufactured using the specific microscope's magnification factor.
- Stage Micrometer: NIST certified 1mm / 100 division stage micrometer included with certification document.
- Total Magnification: 50x, 100x, 200x, 500x.

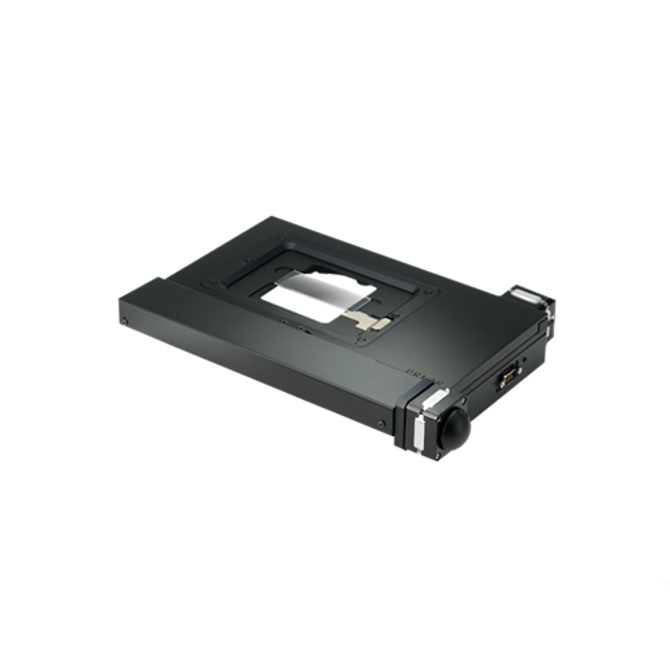

- Specimen Stage: Motorized X/Y stage with motorized Z drive. Includes controller, joystick, RS232, USB cables, and sample holder for petri dish from 25-86mm in diameter.
- Illumination: Reflected Koehler illumination 5w LED, with oblique light device, centerable and adjustable field and aperture diaphragm, warm color. Voltage 100~240V. Includes 360° rotatable analyzer, and polarizer for reflected light. Reflected illuminator arm includes filter slots for colored sliders (sold separately). Includes dual pipe LED illumination system, intensity adjustable, for external 10-20º angle light. Each pipe light is self-supporting.
- Focusing: Reflected frame has coaxial focus system with tension adjustment and rack stop. Coarse range 28mm, fine precision of 0.002mm. Maximum sample height is 78mm.
- Camera & Software: Includes 3.1 megapixel color CMOS camera with 20fps at 1200 x 768, 10fps at full resolution. Image analysis software includes particle counting, particle sizing, shape analysis and ability to find area of particles. Includes 0.5x C-mount adapter.
- Size: 9.8" (250mm) W x 19.7" (500mm) D x 18.6" (472mm) H
- Warranty: 5 Years.
- View the M40 Microscope Manual.
NOTE: This microscope takes about 2 weeks for delivery after an order is placed due to custom calibrations and NIST certification processes.
