High Resolution Stereo Zoom LED Digital Microscope

High Resolution Stereo Zoom LED Digital Microscope

No reviews yet Write a Review

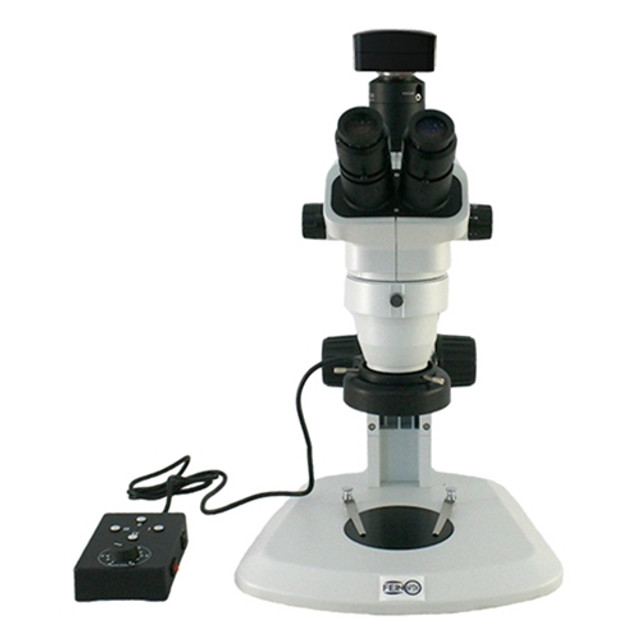

The FZ6 high resolution stereo zoom microscope has a magnification range of 6.7x - 45x and is on an ergonomic post stand with LED top and bottom lights. The sys…

SKU:

$2,595.00 - $7,956.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

The FZ6 high resolution stereo zoom microscope has a magnification range of 6.7x - 45x and is on an ergonomic post stand with LED top and bottom lights. The system includes your choice of digital camera and software.

Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes c-mount adapter.
Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with ±5 diopter adjustment on each eye. Eyepieces accept a 24mm diameter reticle.
Objective Lenses: Zoom range of 0.67x - 4.5x.
Zoom Ratio: 6.7:1
Total Magnification: 6.7x - 45x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details. Note that when changing eyepieces the magnification of the camera will not be altered.
Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
Field of View: 32.8mm at 6.7x and 4.9mm at 45x.

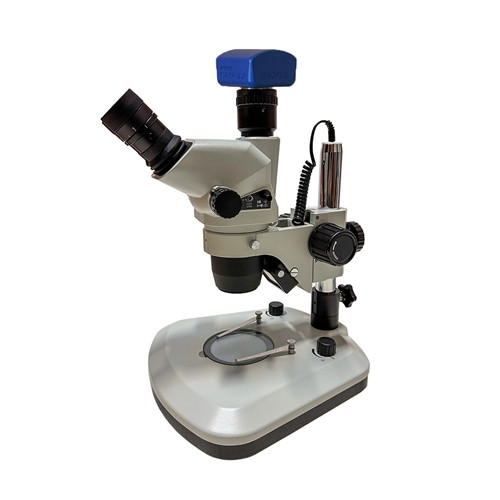

Stand: Post stand with transmitted and reflected LED illuminators. Top light has its own intensity control and each light operates independently of the other. Includes 2 stage clips. 100V~240V.
Specimen Stage: Includes a 100mm glass stage plate, as well as two stage clips.
Focusing: Coarse focusing with tension adjustable focus knobs.
Illumination: Top and bottom LED illuminators with dual intensity control and on/off switches.
Camera: Select from four options on the table below for the camera.
Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. When ordering please select this option if you do not already have a stage micrometer. The stage micrometer included is a dual ruler with 1" equally spaced and numbered 0-10 as well as 25mm equally spaced and numbered 0-25. If NIST certification is selected 10 points in total will be certified. Please note that NIST certification takes approximately 2 weeks.

Camera	Megapixels	Pixel Size	Frames Per Second	Sensor	Software
DCM5.3	5.1	2.0µm x 2.0µm	20fps @ 2592x1944 40fps @ 1296x972	1/2.8" Sony Starvis CMOS	Image Capture & Measurement (PC Only)
Subra	Full HD 2.2	5.5µm x 5.5µm	30fps @ Full HD 1920x1080	2/3" CMOS Back Illuminated	GRYPHAX Image Capture & Measurement (PC & MAC)
Arktur	8	2.4µm x 2.4µm	50fps @ Full HD 1920x1080 30fps @ 3840x2160	2/3" CMOS Back Illuminated	GRYPHAX Image Capture & Measurement (PC & MAC)
Naos	20	2.4µm x 2.4µm	50fps @ 1800x1200 30fps @ 2700x1800	1" CMOS Back Illuminated	GRYPHAX Image Capture & Measurement (PC & MAC)

Microscope Size: 9.5" W x 11.5" D x 15" H
Warranty: 5 Years. 1 Year warranty on camera.
Includes: Dust Cover

FZ6 Stereo Microscope Magnification Chart:

Auxiliary Lens	Working Distance	10x Eyepieces		15x Eyepieces		20x Eyepieces
Auxiliary Lens	Working Distance	Magnification	Field Size	Magnification	Field Size	Magnification	Field Size
1x (None)	100mm	6.7x - 45x	32.8mm - 4.9mm	10.1x - 67.5x	23.9mm - 3.6mm	13.4x - 90x	17.9mm - 2.7mm
0.5x	177mm	3.4x - 22.5x	65.7mm - 9.8mm	5x - 33.8x	47.8mm - 7.1mm	6.7x - 45x	35.8mm - 5.3mm
0.7x	120mm	4.69x - 31.5x	46.9mm - 7mm	7x - 47.25x	34.1mm - 5.1mm	9.38x - 63x	25.6mm - 3.8mm
1.5x	47mm	10.1x - 67.5x	21.9mm - 3.3mm	15.1x - 101.3x	15.9mm - 2.4mm	20.1x - 135x	11.9mm - 1.8mm
2.0x	26mm	13.4x - 90x	16.4mm - 2.4mm	20.1x - 135x	11.9mm - 1.8mm	26.8x - 180x	9mm - 1.3mm
