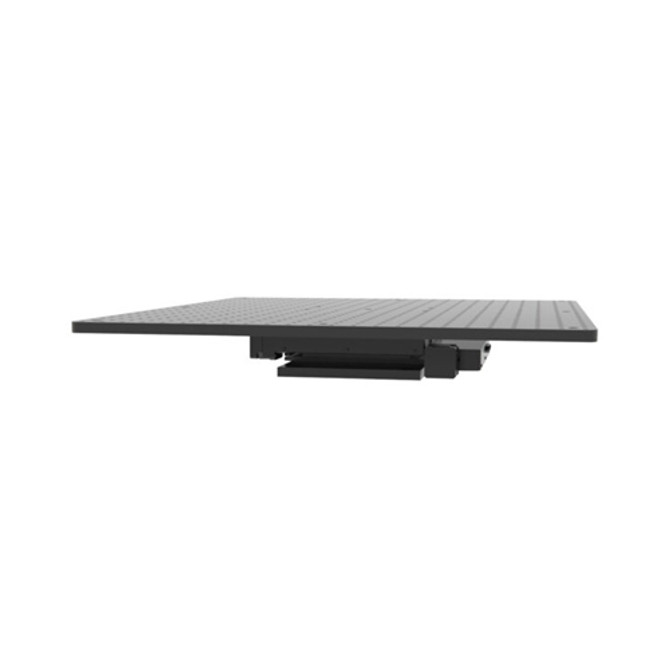

The Prior Scientific HT11300KTNL motorized stage for upright microscopes and hardness testers is ideal for automating the XY scanning of larger samples used in electrophysiology, multiphoton, and industrial applications. The robust heavy duty frame enables the stage to handle point loads up to 100 kg and provides a large travel range. The Intelligent Scanning Technology (IST) allows each stage to be pre-programmed with a unique set of operating characteristics particular to that stage to ensure optimum performance and allows the ProScan III controller to make any required adjustments to maintain superior orthogonally and metric accuracy. Full DLL/SDK available. Easily adapted to existing tables, the stage can be used with 1/4-20 and M6 breadboards making it a truly versatile platform for those heavy duty applications.
Specify microscope make and model when ordering.
Motorized Stage Specifications:
- Travel: 108mm x 108mm XY travel (4.2" x 4.2")
- Motor Type: Stepper
- Resolution: 20nm
- Compatible With: ProScan III Controller, joystick, USB, RS232, or TTL commands.
- Max Load Capacity: 100 kg (220 lbs) point load
- Warranty: 5 Years
View the HT11300KTNL Motorized Stage Brochure
NOTE: This item is not returnable.
Prior Scientific Part #s HT11300KTNL.
