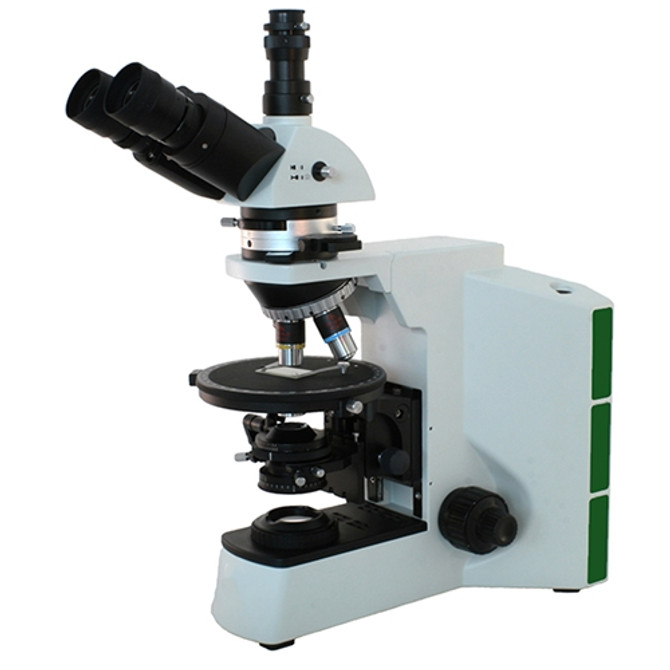

Fein Optic R40POL Transmitted Light Polarizing Microscope

The Fein Optic R40POL, transmitted light polarizing microscope provides transmitted light along with high quality strain-free polarizing objectives for the most intensive geology work.

• Viewing Head: 30° inclined gemel trinocular head with interpupillary distance adjustable from 54-75mm. Trinocular port allows 100:0 or 50:50 light. Quadruple revolving reversed nosepiece.
• Eyepieces: Left eyetube has diopter +/-5. Includes high eyepoint widefield PL 10x/22mm eyepieces, paired. One eyepiece contains cross-line reticle.
• Objective Lenses: Stress free plan Infinity Corrected 4x, 10x, 40x, objectives are included. Optional 20x and 60x available below.
• Total Magnification: 40x, 100x, 400x.

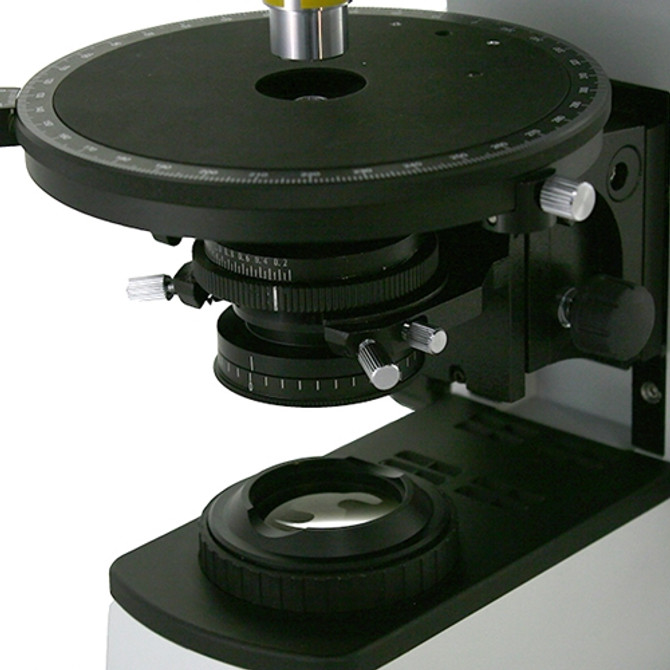

• Specimen Stage: 160mm diameter circular metal stage with graphite coating, anti-corrosive and anti-friction, rotates 360°, 1° increment, precision 6', with locking device.
• Illumination: Transmitted Koehler 12v, 50w halogen lamp is centered with iris diaphragm. Voltage 100V~240V.
• Condenser: Swing-out achromatic condenser (NA1.2) with 360° rotatable polarizer, four adjustable scale: 0/90/180/270.
• Focusing: Coarse focusing with upper limit and tension adjustment, fine focusing precision of 0.002mm. Focusing knob is low-position for comfortable operation.
• Bertrand Lens: Intermediate tube holds removable internal Bertrand lens with rotating switch, centerable and focusable.
• Analyzer: Intermediate tube holds pluggable analyzer, 360° rotatable in 2° increments, precision 6' with locking device.
• Compensator: Gyps1λ, Mica 1/4λ, Quartz Wedge.
• Size & Weight: 19.8" (503mm) H x 17" (432mm) D x 9.8" (250mm) W
• Warranty: 5 Years.
• View the user's manual for the R40POL here.
• View the brochure for the R40POL polarizing microscope here.
