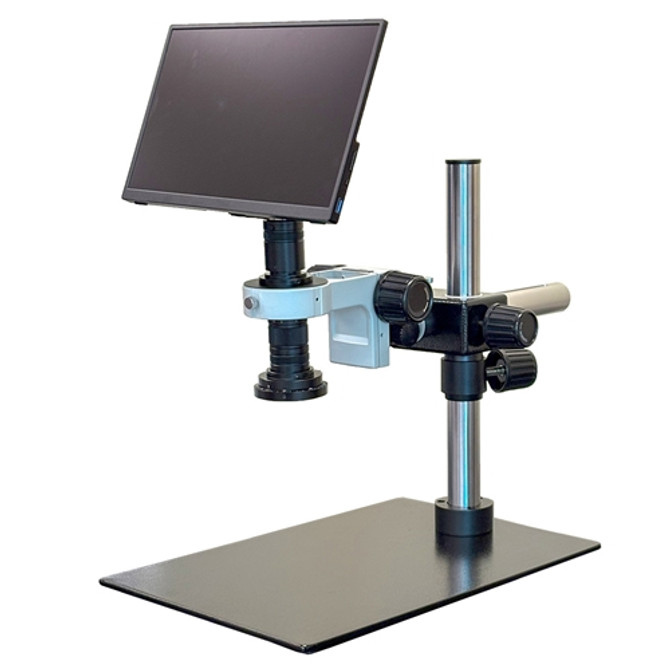

DX56-BSRB Zoom Digital Boom Microscope 15x - 154x

This zoom microscope lens system provides 15x-154x on-screen magnification. Choose from a 2mp HD or an 8mp UHD 4K camera for capturing high quality images on the included 13" monitor. The 8mp camera includes software that allows for image capture and measurement on a PC. This system is on a boom stand, which provides space for observing larger objects.

• Zoom Lens: Zoom lens range is 0.7x - 5.6x and has detent to ensure repeatability of measurement. Choose from a 1x or a 0.75x auxiliary lens when ordering to achieve your desired on screen magnification range. Please refer to the the table below for the magnification ranges provided with each of these options. NA = 0.09
• Maximum resolution: 5µm
• Stand: Boom stand has a solid rectangular base (300mm x 450mm). The height-adjustable vertical column is 400mm high. The distance of the reach of the horizontal arm of the boom stand is adjustable. System includes coarse focusing holder.
• Illumination: LED ring light with integrated polarizer and analyzer.
• Camera options: Choose from the following when ordering:
  • 2mp HD camera HDCAM3B is a HD 1080p camera, live resolution 1920x1080 pixels. 2mp image capture to USB flash drive. (Flash drive is not included.) Live image 1080p / 60 fps. HDMI connection to 13" HD monitor. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls. HDMI direct connection to monitor. On-screen measurement and calibration.
  • 8mp UHD 4K camera HDCAM7 is a 4K HD 2160p scientific grade camera that has all in one camera HDMI + USB3 + SD Card / USB Flash Drive. Live image 3840 x 2160 at 30 frames per second. Image capture (8mp) to SD Card (card is included) or USB flash drive (not included). On-screen measurement and calibration. This camera includes software for image capture and measurement on a PC.
• LCD HD/ UHD Monitor: 13" LCD HDMI monitor with 4K resolution. LED backlight. Monitor mounts directly onto HD camera and includes 110~240V power cord and HDMI cable.
  • 2mp HD camera system HDCAM3B includes a 13" HD Monitor.
  • 8mp camera system HDCAM7 includes a 13" UHD Monitor.
• Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. When ordering, you may purchase a stage micrometer separately if you do not already have a stage micrometer.
• Warranty: 2 year warranty.

Fein Optic DX56P-LCD-BSRB, DX56P-HD-BSRB
