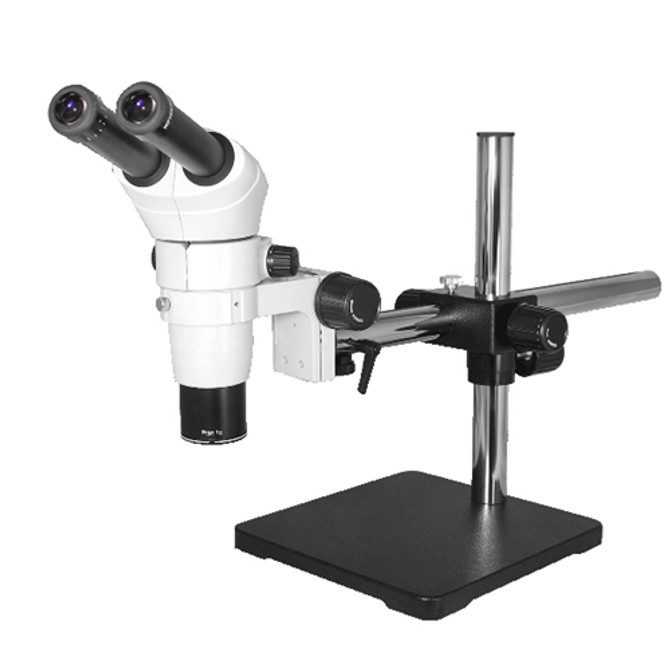

Common Main Objective Boom Stereo Zoom Microscope 8x-80x

This common main objective parallel stereo zoom microscope provides 10x - 80x zoom magnification. The microscope uses the Galileo Optial System (parallel optical path), which allows the image to stay clear and in focus throughout the entire range of focus. Ergonomic design provides the user with a comfortable working experience.

• Stereo Microscope Body: 20° inclined parallel binocular zoom stereo microscope body rotates 360º, zoom range of 0.8x - 8x, zoom ration of 1:10, with two horizontal zoom knobs. Infinite optical system.
• Eyepieces: Includes Widefield 10x eyepieces with dual diopters +/-5, field of view 24mm. Interpupillary distance adjustable 52-75mm. Accepts 27mm diameter eyepiece reticle. WF15x and WF20x eyepieces available, call for info.
• Objective Lens: Plan Achromat 1.0x. Achromatic 0.3x & 0.5x as well as Plan Apochromatic 0.5x, 2x objectives available, call for more info.
• Working Distance: 78mm.
• Field of View: 30.0mm at 8x - 3mm at 80x.
• Total Magnification: 8x - 80x.
• Stand: Boom stand with 384mm vertical post.
• Focusing Holder: Focusing holder has coarse focusing. Focus distance of 50mm, 20mm focus distance per rotation.
• Illumination: Your choice of no illumination, LED 4-Quadrant ring light, or LED dual pipe illuminator.
• Size / Weight: 259mm x 290mm x 600mm, 46lbs.
• Warranty: Microscope includes a 5-year warranty. Illuminator has 1-year warranty.
