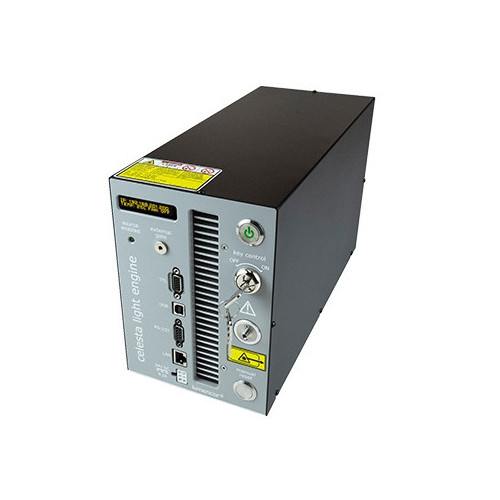

CELESTA Solid-State Laser Array Light Engine

The Lumencor CELESTA light engine provides four, five, or seven individually addressable solid-state laser light sources with an advanced electronic control system to deliver unprecedented output power and performance. Used for confocal, MERFISH, super-resolution microscopy, optogenetics, FRAP and DNA-PAINT applications.

Contact Microscope World for a quote or additional information.

• Sources: Option of 4, 5, or 7 class 4 multimode laser sources (VCGR, VCGRN, VBCTGRN, VBCTGRnIR) with output despeckler.
• Wavelengths: Nominal center wavelengths 405, 446, 477, 520, 546, 638, 749 +/- 2nm.
• Bandpass Filters: Integrally installed bandpass filters for spectral output refinement.
• Light Delivery: SMA or FC/PC terminated fiber for your choice of:
  • SMA ~800 mW output per color channel at distal end of 1mm or 1.5mm multimode fiber.
  • FC/PC ~500-700 mW output per color channel at distal end of 400µm multimode fiber.
  • FC/PC ~200-750 mW output per color channel at distal end of 400µm multimode fiber.
• Safety Interlocks: Laser output contingent on manual (key) and remote (electronic) interlocks.
• Operational Control: Onboard computer with server/client architecture and embedded command library.
• Control Interfaces: Source selection, light output on/off and intensity via serial interface (RS-232/USB or TCP). Source selection and light output on/off via TTL.
• Software: Onboard GUI or PC-based image acquisition software.
• Size/Weight: W x L x H = 145 x 340 x 203mm (5.7" x 13.4" x 8"), 19lbs.
• Warranty: 18 Months
• Includes:  package includes USB and ethernet control cables, DC power supply cord. Optical fiber is sold separately.

NOTE: This item is not returnable.
