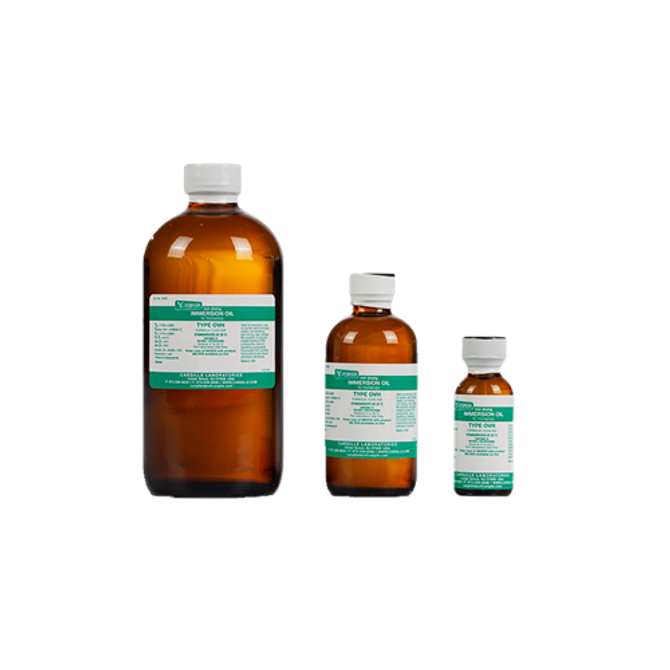

Cargille Immersion Oil Type OVH

Cargille Immersion oil Type OVH has a very high viscosity and is intended for use with inverted microscopes, projection, inclined, and long focus instruments where there is a greater gap between the cover glass and objectives, or between the slide and condenser. The higher viscosity provides exceptional image results.

• Refractive Index at 23ºC:
  • F Line (486.1 nm) - 1.5230
  • e Line (546.1 nm) - 1.5178
  • D Line (589.3 nm) - 1.5150
  • C Line (656.3 nm) - 1.5118
• Viscosity: 46,000 cSt +/- 10% @ 23ºC (Very High)
• Certifications: ISO 8036-1
• Size: 1fl. oz, 4fl. oz., of 16fl.oz. The 1fl. oz bottles feature a dropper for easy application.
• Shelf Life Unopened: 10 years from date of manufacture.
• Shelf Life Opened: half the remaining time after opening.

View a chart comparing types of immersion oil here.

Cargille Part # = 16487. Cargille optical liquids are developed and manufactured in the USA.
View the Cargille Immersion Oil Type OVH Data Sheet here.
View the Cargille Immersion Oil Type OVH MSDS here.

NOTE: This item is not returnable.
