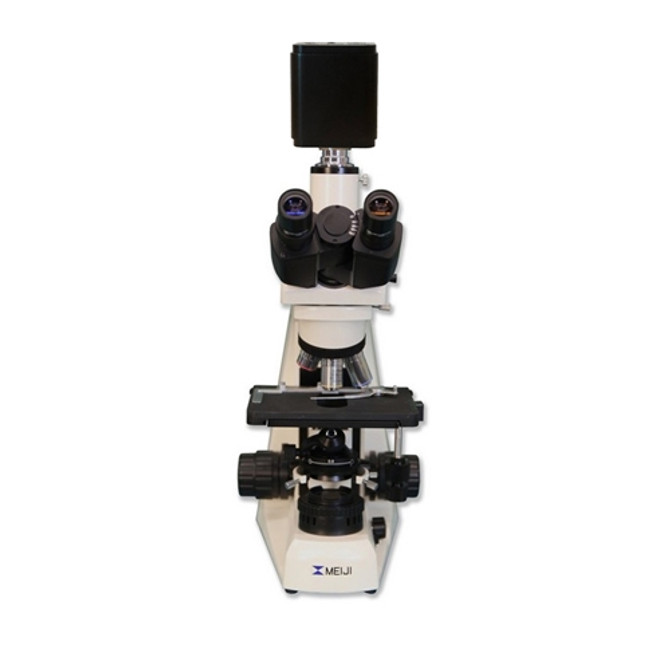

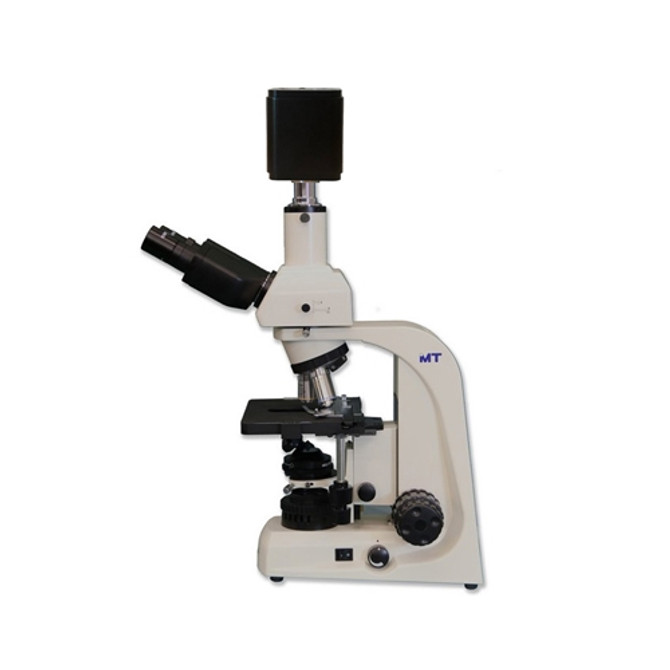

Advanced Mohs Digital Dermatology Microscope

The Meiji MT4300D dermatology microscope includes the infinity corrected optical system and high quality U. Plan objectives. This digital microscope includes a 4K scientific grade HD microscope camera and a 27" 4K monitor for convenient image viewing.

• Objective Lenses: DIN Infinity Corrected Optical System (ICOS) objectives are mounted in a smooth-operating, ball bearing mounted, quintuple nosepiece. Dermatology microscope objectives include:
  • Plan Apo 1.25x/0.04, WD 3.7mm
  • Plan Semi-Apo 4x/0.10, WD 17.8mm
  • Plan Semi-Apo 10x/0.25, WD 10.7mm
  • Plan Semi-Apo 20x/0.40, WD 7.29mm
  • Plan Semi-Apo 40x/0.65, WD 0.5mm
• Viewing Head: Includes Siedentopf-type trinocular head for camera integration. The head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.)
• Eyepieces: Includes 10x Widefield High Eyepoint eyepieces, F.N.20.
• Total Magnification: 12.5x, 40x, 100x, 200x and 400x.
• Specimen Stage: Ceramic coated right-handed, flat top stage 171mm x 115mm that travels 78mm(X) x 52mm(Y). Stage has ergonomically positioned coaxial drop down controls.
• Illumination: Powerful white LED Illumination from 3W LED bulb with 5500K color temperature provides enhanced image quality and brightness for the observation of dermatology samples.
• Light Focusing: Includes centerable Abbe 1.25 NA Condenser with swing-out top lens, iris diaphragm in dovetail mount.
• Camera: The HDCAM7 is a 4K HD 2160p scientific grade camera that has all in one camera HDMI + USB3 + SD Card / USB Flash Drive. Includes c-mount adapter and image analysis software.
• Monitor: Includes 27" 4K monitor for displaying images.
• Size & Weight: 390mm (15.6") D x 465 (18.3") H x 210mm (8.3") W, 8.7kg (19.2 lbs).
• Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
