High Power Microscope Objectives

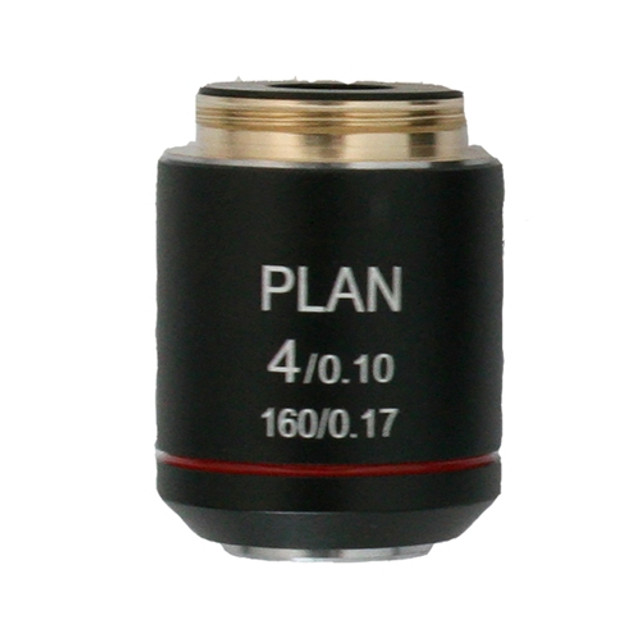

Richter Optica 160mm tube length Plan Achromat 4x microscope objective lens. For use with 0.17mm thick cover slip. Plan Achromat 4x microscope objective. NA = 0.10 WD = 15.1mm

Richter Optica 160mm tube length Plan Achromat 10x microscope objective lens. For use with 0.17mm thick cover slip. Plan Achromat 10x microscope objective. NA = 0.25 WD = 1.5mm

Richter Optica 160mm tube length Plan Achromat 40x microscope objective lens. For use with 0.17mm thick cover slip. Plan Achromat 40x microscope objective. NA = 0.65 WD = 0.38mm

Richter Optica 160mm tube length Plan Achromat 100x oil immersion microscope objective lens. For use with 0.17mm thick cover slip. Plan Achromat 100x oil microscope objective. NA = 1.25 WD = 0.09mm

Richter Optica 160mm tube length Achromat 100x oil immersion microscope objective lens for HS-3 model microscopes. Achromat 100x oil immersion microscope objective for HS-3 model microscopes. NA = 1.25

Plan Apochromat F4x objective for epi-fluorescence microscopy. NA 0.13, FL 24, WD 17.5mm. Infinity corrected objective lens parfocal distance 45mm, FL-200mm, DIN Standard 0.7965" (20.1mm) diameter threads, 36 TPI, 55° Whitworth.

TC Planachromat 4x objective, infinity corrected. NA 0.13, focal length 50.0mm, working distance 17.3mm.

TC Planachromat 40x objective, infinity corrected. NA 0.65, focal length 5mm, working distance 2.8mm.

DIN 60xR objective lens, N.A. 0.85 retractable, for use with National Optical 160 Series.

This super contrast achromatic 100x objective lens is for use with B1 series of microscopes and has the following specifications: NA = 1.25 WD = 0.14mm Thread Size = 20.32mm / pitch 0.706 (RMS) Objective immersion = oil DIN = 45mm Motic part #...

This super contrast achromatic 60x objective lens is for use with B1 series of microscopes and has the following specifications: NA = 0.85 WD = 0.10mm Thread Size = 20.32mm / pitch 0.706 (RMS) DIN = 45mm Motic part # 1101001701591 NOTE: This item is...

This super contrast achromatic 40x objective lens is for use with B1 series of microscopes and has the following specifications: NA = 0.65 WD = 0.45mm Thread Size = 20.32mm / pitch 0.706 (RMS) DIN = 45mm Motic part # 1101001701562 NOTE: This item is...
