PAX-it Basic Measurement Software

The PAX-it basic measurement software was created for use with the PAX-it cameras. The basic measurement software includes all features of the PAX-it imaging software and allows for measurement, annotations and analysis of images with just a few clicks. Written reports can be created with the raw data obtained, a summary table of statistics, image database information plus the images involved.



Basic Measurement Software Options Include:

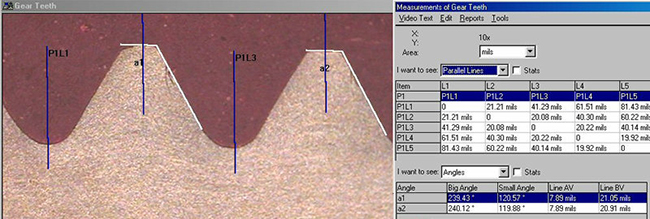

• Point-to-point linear measurement
• Angle measurement
• Radius and diameter on ellipse
• Area and perimeter for ellipse or rectangle
• Length of segmented lines
• Area and perimeter of irregular shapes
• Manual counter for tagging and summing
• Arc, elipse, circle measurements including definition of center point, chord lengths, sweep angles and radii
• Parallel line calipers for defining multiple layers or zones



All of PAX-it's measurements are stored as overlays or annotations Below are some of the additional features.

• Measure using microns, millimeters, centimeters, inches, pixels, feet, meters and mils.
• Scale bars can be placed on top of images.
• Measurements can be named in order to quickly make a measurement with a pre-defined name.
• Measurement attributes can be stored and reused.
• The tolerance indicator can be used to automatically tell you if a measurement falls out of specifications.
• The built-in calibration interface is simple to use.
